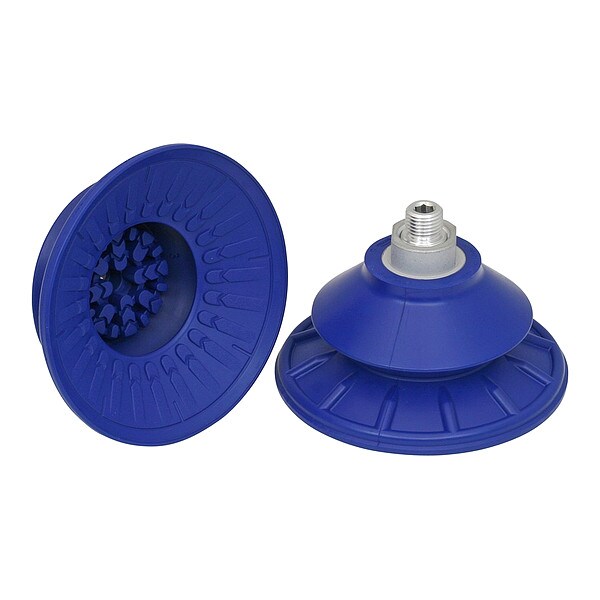

Bellow Suction cup for Sheet handling
Mfr # 10.01.06.00807
Zoro # G311471664
product price: $47.39
/eaSold in multiples of 5 for $236.95
Key Features
Pad Type
Bellows
Pad Material
NBR
Port Size
1/4 in
Pad Height
56.6 mm
Adapter Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
10.01.06.00807
Zoro #
G311471664
UPC #
-
Country of Origin
Germany
Dimensions
Port Size
1/4 in
Pad Height
56.6 mm
Pad Diameter
110 mm
Overall Height
66.6 mm
Outside Diameter
100 mm
Details
Pad Type
Bellows
Pad Material
NBR
Item
Bellow Suction cup for Sheet handling
Adapter Material
Aluminum
Durometer
60 A
For Use With
Handling Sheet Metal
Standards
DIN ISO 3302-1 M3
Series
SAB
Weight
97.3 g
Stroke
25.8 mm
Hardness
60 Shore A
Maximum Vacuum Pressure
-0.6 bar
Number of Folds
1.5
Port Type
G
Pad Color
Blue
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 100 mm, Overall Height 66.6 mm, Pad Color Blue, Pad Diameter 110 mm, Hardness 60 Shore A, Pad Height 56.6 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 25.8 mm, Weight 97.3 g
