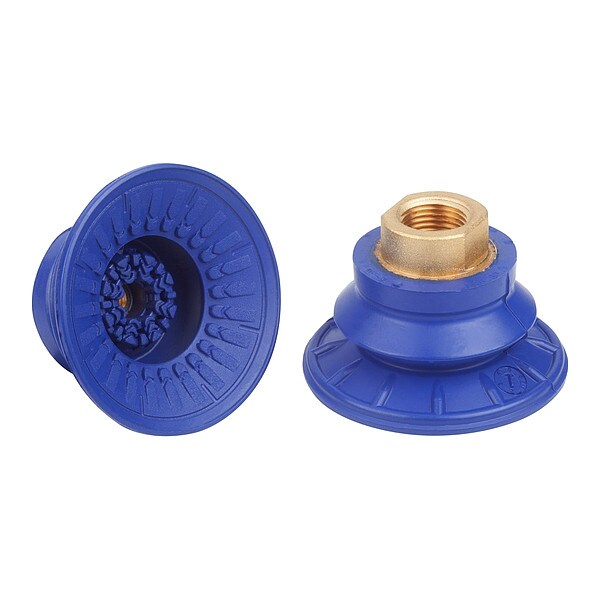

Bellow Suction cup for Sheet handling
Mfr # 10.01.06.01972
Zoro # G811854240
product price:Â $34.29
/eaKey Features
Pad Type
Bellows
Pad Material
NBR
Pad Height
41.3 mm
Port Size
3/8 in
Outside Diameter
60 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 10.01.06.01972
- Zoro #
- G811854240
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Pad Height
- 41.3 mm
- Port Size
- 3/8 in
- Outside Diameter
- 60 mm
- Overall Height
- 56.3 mm
- Pad Diameter
- 67 mm
Details
- Pad Type
- Bellows
- Pad Material
- NBR
- Stroke
- 14.5 mm
- Hardness
- 60 Shore A
- Weight
- 40 g
- For Use With
- Handling Sheet Metal
- Pad Color
- Blue
- Series
- SAB
- Item
- Vacuum Pad Assembly
- Maximum Vacuum Pressure
- -0.6 bar
- Port Type
- NPT
- Number of Folds
- 1.5
- Durometer
- 60 A
- Adapter Material
- Brass
- Standards
- DIN ISO 3302-1 M3
Description
Item Vacuum Pad Assembly, Adapter Material Brass, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 60 mm, Overall Height 56.3 mm, Pad Color Blue, Pad Diameter 67 mm, Hardness 60 Shore A, Pad Height 41.3 mm, Pad Material NBR, Pad Type Bellows, Port Size 3/8 in, Port Type NPT, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 14.5 mm, Weight 40 g
