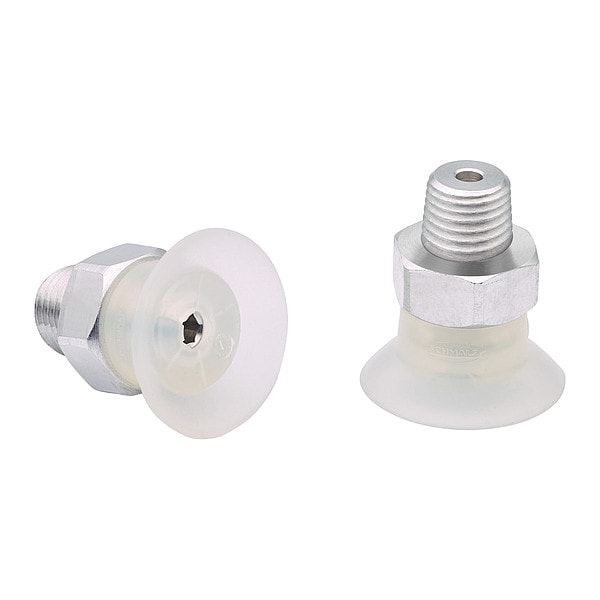

Flat Suction Cup
Mfr # 10.01.01.15012
Zoro # G911471675
product price: $15.39
/eaSold in multiples of 10 for $153.90
Key Features
Pad Type
Flat
Pad Material
Silicone
Pad Height
15.3 mm
Port Size
1/8 in
Maximum Vacuum Pressure
-0.6 bar
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
10.01.01.15012
Zoro #
G911471675
UPC #
-
Country of Origin
Germany
Dimensions
Pad Height
15.3 mm
Port Size
1/8 in
Outside Diameter
18 mm
Pad Diameter
2.6 mm
Overall Height
22.8 mm
Details
Pad Type
Flat
Pad Material
Silicone
Maximum Vacuum Pressure
-0.6 bar
Port Type
NPT
Durometer
55 A
Stroke
1.8 mm
Hardness
55 Shore A
Item
Flat Suction Cup
Number of Folds
0
Weight
5.1 g
Standards
FDA Approved
Series
SUF
Pad Color
Clear
Description
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 18 mm, Overall Height 22.8 mm, Pad Color Clear, Pad Diameter 2.6 mm, Hardness 55 Shore A, Pad Height 15.3 mm, Pad Material Food Grade Silicone Rubber, Pad Type Flat, Port Size 1/8 in, Port Type NPT, Series SUF, Standards FDA Approved, Stroke 1.8 mm, Weight 5.1 g
