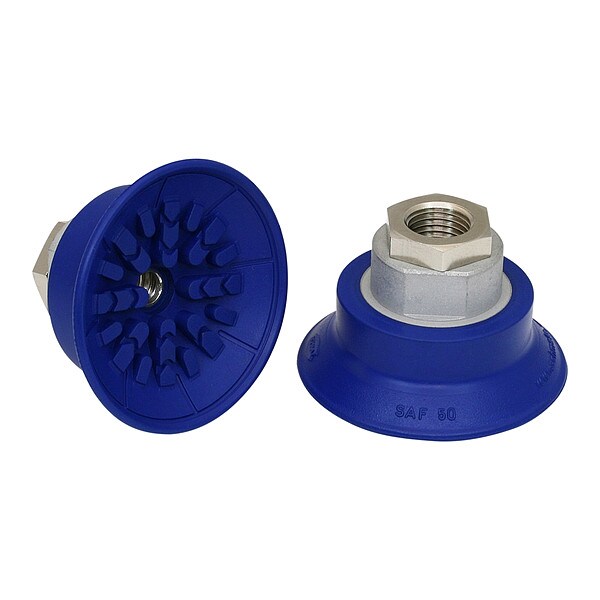

Flat Suction Cup for Sheet handling
Mfr # 10.01.01.10688
Zoro # G511471570
product price:Â $40.39
/ea
Sold in multiples of 5 for $201.95
Key Features
Pad Type
Flat
Pad Material
NBR
Pad Height
33 mm
Port Size
1/4 in
Hardness
60 Shore A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 10.01.01.10688
- Zoro #
- G511471570
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Pad Height
- 33 mm
- Port Size
- 1/4 in
- Overall Height
- 48 mm
- Outside Diameter
- 50 mm
- Pad Diameter
- 56 mm
Details
- Pad Type
- Flat
- Pad Material
- NBR
- Hardness
- 60 Shore A
- Number of Folds
- 0
- Maximum Vacuum Pressure
- -0.6 bar
- Weight
- 30.8 g
- Durometer
- 60 A
- Item
- Vacuum Pad Assembly
- Standards
- DIN ISO 3302-1 M3
- For Use With
- Handling Sheet Metal
- Port Type
- G
- Series
- SAF
- Stroke
- 5 mm
- Adapter Material
- Nickel Plated
- Pad Color
- Blue
Description
Item Vacuum Pad Assembly, Adapter Material Nickel Plated, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 50 mm, Overall Height 48 mm, Pad Color Blue, Pad Diameter 56 mm, Hardness 60 Shore A, Pad Height 33 mm, Pad Material NBR, Pad Type Flat, Port Size 1/4 in, Port Type G, Series SAF, Standards DIN ISO 3302-1 M3, Stroke 5 mm, Weight 30.8 g
