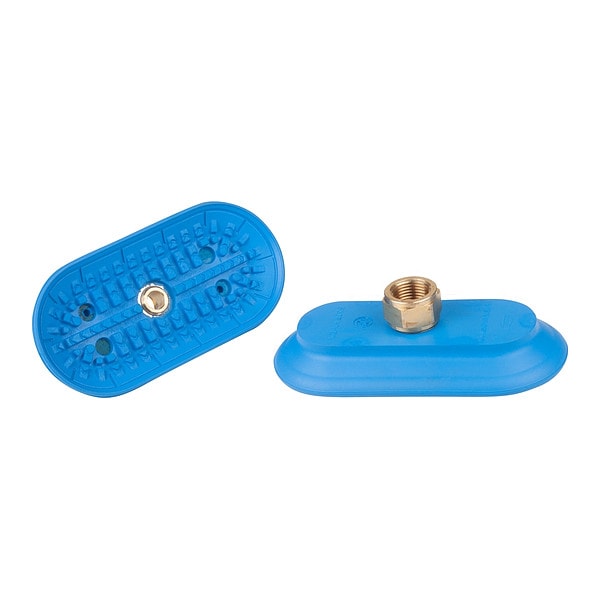

Oval Suction Cup for Sheet handling
Mfr # 10.01.05.00761
Zoro # G511471662
product price:Â $68.39
/ea
Sold in multiples of 5 for $341.95
Key Features
Pad Type
Flat Oval
Pad Material
NBR
Pad Height
32.5 mm
Port Size
3/8 in
Overall Height
41.5 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 10.01.05.00761
- Zoro #
- G511471662
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Pad Height
- 32.5 mm
- Port Size
- 3/8 in
- Overall Height
- 41.5 mm
- Pad Diameter
- 60 mm, 120 mm
Details
- Pad Type
- Flat Oval
- Pad Material
- NBR
- Item
- Vacuum Pad Assembly
- Port Type
- NPT
- Series
- SAOF
- Stroke
- 6 mm
- For Use With
- Handling Sheet Metal
- Adapter Material
- Brass
- Number of Folds
- 0
- Durometer
- 45 A
- Hardness
- 45 Shore A
- Maximum Vacuum Pressure
- -0.6 bar
- Standards
- DIN ISO 3302-1 M3
- Pad Color
- Blue
Description
Item Vacuum Pad Assembly, Adapter Material Brass, Durometer 45 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Overall Height 41.5 mm, Pad Color Blue, Pad Diameter 60 mm, 120 mm, Hardness 45 Shore A, Pad Height 32.5 mm, Pad Material NBR, Pad Type Flat Oval, Port Size 3/8 in, Port Type NPT, Series SAOF, Standards DIN ISO 3302-1 M3, Stroke 6 mm
