Shop SCHMALZ

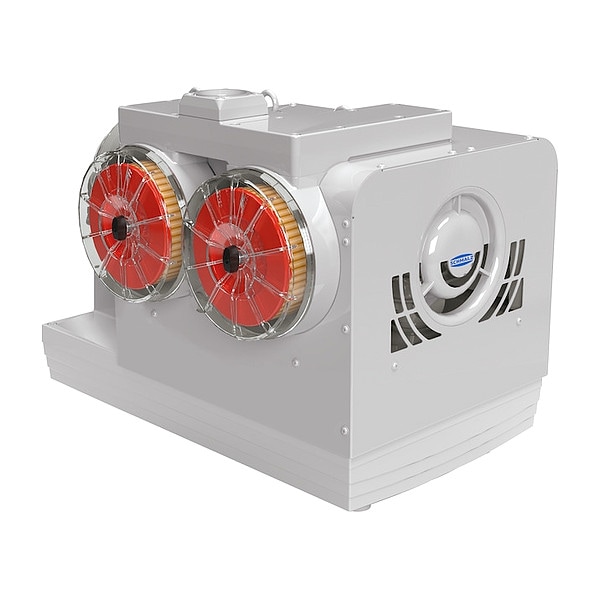

Vacuum Claw Pump

  • Mfr # 10.03.01.00692
  • Zoro # G311938518

product price:
$
26,232.99
/ea
Additional $695.00 delivery surcharge applies per item.
See details

Key Features

Voltage
230/400V
Inlet Size
2 1/2 in
Outlet Size
2 in
Pump Type
Claw
Output Power
7.5 kW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
10.03.01.00692
Zoro #
G311938518
UPC #
-
Country of Origin
Germany
Item
Vacuum Claw Pump
Voltage
230/400V
Pump Type
Claw
Output Power
7.5 kW
Application
Dry and Oil-Free Vacuum Generation, Use in Processing Machines
Series
EVE-KL
Current Rating
12.4 A, 14.1 A, 24.5 A, 24.8 A
Includes
Filter
Standards
CSA, UL Listed
Inlet Type
G
Frequency
50 Hz, 60 Hz
Outlet Type
G
Runs Dry
Yes
Enclosure Rating
IP 55
Inlet Gender
Female
Weight
328 kg
Sound Level
69 dBA, 70 dBA
Outlet Gender
Female
Maximum Operating Temperature
20 Degrees C
Phase
Three
Filter Type
Integrated
Maximum Vacuum
850 mbar
Maximum Operating Pressure
1,000 mbar
Maximum Flow Rate
325 cu m/hr

Dimensions

Inlet Size
2 1/2 in
Outlet Size
2 in
Overall Width
483 mm
Overall Height
624 mm
Overall Length
918 mm
Wire Rope Length
918 mm
Length
918 mm

Description

Vacuum Claw Pump, Output Power 7.5 kW, Phase Three, Voltage 230/400V, Maximum Flow Rate 325 cu m/hr, Maximum Vacuum 850 mbar, Inlet Size 2 1/2 in, Inlet Type G, Inlet Gender Female, Outlet Size 2 in, Outlet Type G, Outlet Gender Female, Application Dry and Oil-Free Vacuum Generation, Use in Processing Machines, Maximum Operating Pressure 1,000 mbar
