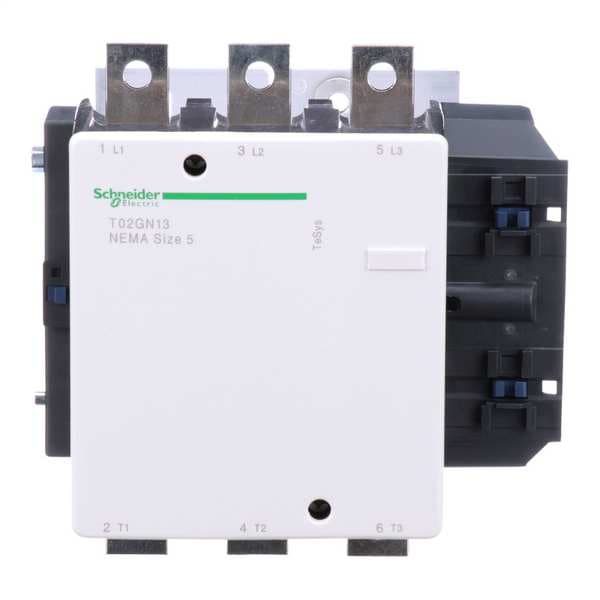

120VAC Non-Reversing Magnetic Contactor 3P 270A NEMA 5

  • Mfr # T02GN13G7

  • Zoro # G7148154

product price:
$
4,719.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
270 A
Action
Non-Reversing
Number of Poles
3
Coil Volts
120V AC
NEMA Contactor Size
5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T02GN13G7
Zoro #
G7148154
UPC #
785901162193
Country of Origin
United States

Dimensions

NEMA Contactor Size
5
Height
8.1 in
Width
8.4 in
Depth
8.6 in
NEMA Size
5
Overall Height
8.11 in
Overall Depth
8.71 in
Overall Width
8.39 in

Details

Item
NEMA Magnetic Contactor
Full Load Amps
270 A
Action
Non-Reversing
Number of Poles
3
Coil Volts
120V AC
Reversing
No
HP @ 3 Phase - 208V
75 hp
HP @ 3 Phase - 240V
100 hp
HP @ 3 Phase - 575V
200 hp
HP @ 3 Phase - 480V
200 hp
Enclosure NEMA Rating
No Enclosure
Hz
40/400
Frame / Series / Class / Code
TeSys
Standards
CSA, UL Listed
Series
TeSys N
Auxiliary Contact Form
1NO
Poles Description
3P
Nema Degree Of Protection
not rated (open device)
Phase
Three
Auxiliary Contact Composition
1 NO
Contactor Application
non-reversing
Control Circuit
common control circuit
Product Certifications
UL Listed || CSA
Electrical Connection
lugs ordered separately
Product Or Component Type
contactor
[Uc] Control Circuit Voltage
120 V AC
Line Rated Current
270 A
[Ue] Rated Operational Voltage
600 V AC
Maximum Horse Power Rating
75 hp 200 V AC || 100 hp 230 V AC || 200 hp 460 V AC || 200 hp 575 V AC
Horsepower @ Three Phase - 480V AC
200 hp
Frequency
50/60 Hz
Contactor Style
NEMA
Horsepower @ Three Phase - 240V AC
100 hp
Reversing Capability
Non-Reversing
Embedded Surge Suppressor
No
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 208V AC
75 hp
Horsepower @ Single Phase - 240V AC
100 hp
Coil Voltage
120V AC
Full Load Current - Inductive
270 A
Horsepower @ Three Phase - 600V AC
200 hp
Maximum Voltage Rating
600V AC
Includes Auxiliary Contacts
Yes
Terminal Connection Type
Screw Clamp Terminals
Number of Auxillary Contacts
1

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 5, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 270 A, Reversing Capability Non-Reversing, Overall Height 8.11 in, Overall Width 8.39 in, Terminal Connection Type Screw Clamp Terminals, Series TeSys N, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 100 hp, Horsepower @ Three Phase - 480V AC 200 hp, Phase Three
