Shop SCHNEIDER ELECTRIC

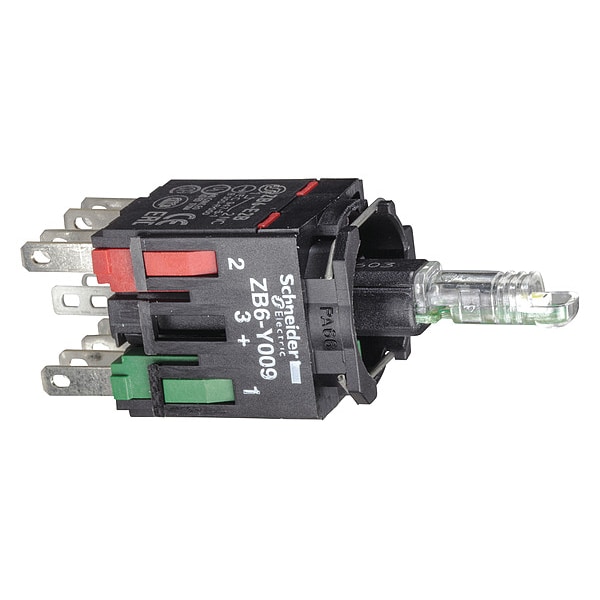

16Mm Grn Lt Mod 65168014

  • Mfr # ZB6ZB35B

  • Zoro # G0564405

product price:  $25.19
/ea

Key Features

Standards
JIS C 852 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-1 || CSA C22.2 No 14
Cad Overall Height
18 mm
Surge Withstand
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Contacts Type And Composition
1 NO + 1 NC
Protective Treatment
TC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB6ZB35B
Zoro #
G0564405
UPC #
785901367147
Country of Origin
France

Dimensions

Cad Overall Height
18 mm
Cad Overall Depth
51 mm
Cad Overall Width
24 mm

Details

Item
Light Block
Standards
JIS C 852 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-1 || CSA C22.2 No 14
Surge Withstand
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Contacts Type And Composition
1 NO + 1 NC
Protective Treatment
TC
Light Source
LED
Electrical Reliability
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4
Operating Force
1.6 N NO changing electrical state || 2.5 N NC changing electrical state
Device Short Name
ZB6
Connections - Terminals
Faston connector 2.8 x 0.5 mm
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Current Consumption
15 mA
Positive Opening
with EN/IEC 60947-5-1 appendix K
Electromagnetic Emission
class B IEC 55011
Light Source Colour
green
Short-Circuit Protection
6 A cartridge fuse gG EN/IEC 60947-5-1
Signalling Type
steady
Contacts Usage
standard
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Fixing Collar Material
plastic
Contact Operation
slow-break
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
[Us] Rated Supply Voltage
12 to 24 V AC/DC
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-25-70°C
Electrical Shock Protection Class
class II IEC 61140
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Terminals Description Iso N°1
(11-12)NC
Contacts Material
silver alloy (Ag/Ni)
Product Certifications
GOST || CSA || CCC || UL
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Supply Voltage Limits
6-30 V AC/DC
Resistance To Fast Transients
2 kV IEC 61000-4-4
Bulb Base
integral LED
Product Or Component Type
complete body for illuminated push-button
Operating Travel
1 mm NC changing electrical state) || 2 mm NO changing electrical state) || 4.3 mm total travel)
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Terminals Description Iso N°1
(11-12)NC
Includes Bulb
Bulb Included

Description

Light Block
