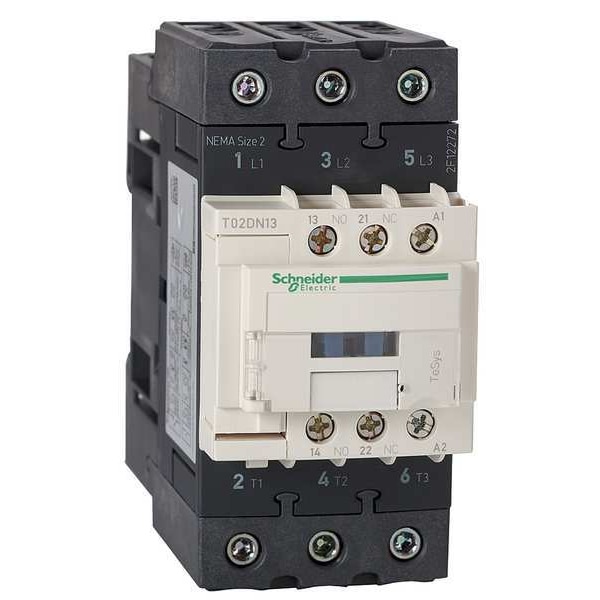

Schneider Electric 24VDC Non-Reversing Magnetic Contactor 3P 45A NEMA 2 T02DN13BD - main

24VDC Non-Reversing Magnetic Contactor 3P 45A NEMA 2

  • Mfr # T02DN13BD

  • Zoro # G6184534

product price: $427.99
/ea
Free Shipping & Returns

Key Features

Action
Non-Reversing
Full Load Amps
45 A
Number of Poles
3
NEMA Contactor Size
2
Reversing
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T02DN13BD
Zoro #
G6184534
UPC #
785901884767
Country of Origin
France

Dimensions

NEMA Contactor Size
2
Height
4.8 in
Width
2.17 in
Depth
4.72 in
NEMA Size
2
Overall Width
2.16 in
Overall Depth
4.72 in
Overall Height
5.47 in

Details

Item
Magnetic Contactor
Action
Non-Reversing
Full Load Amps
45 A
Number of Poles
3
Coil Volts
24V DC
Reversing
No
HP @ 1 Phase - 120V
3 hp
HP @ 1 Phase - 240V
7 1/2 hp
HP @ 3 Phase - 208V
10 hp
HP @ 3 Phase - 575V
25 hp
HP @ 3 Phase - 240V
15 hp
HP @ 3 Phase - 480V
25 hp
Enclosure NEMA Rating
No Enclosure
Auxiliary Contact Form
1NO/1NC
Standards
CSA, UL Listed
Frame / Series / Class / Code
TeSys
Series
TeSys N
Phase
Three
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Three Phase - 600V AC
25 hp
Reversing Capability
Non-Reversing
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Includes Auxiliary Contacts
Yes
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 480V AC
25 hp
Horsepower @ Single Phase - 120V AC
3 hp
Contactor Style
NEMA
Terminal Connection Type
Screw Clamp Terminals
Maximum Voltage Rating
600V AC
Full Load Current - Inductive
45 A
Number of Auxillary Contacts
2
NEMA Enclosure Rating
No Enclosure
Coil Voltage
24V DC
Horsepower @ Three Phase - 240V AC
15 hp
Control Circuit
common control circuit
Poles Description
3P
Auxiliary Contact Composition
1 NO + 1 NC
[Uc] Control Circuit Voltage
24 V DC
Contactor Application
non-reversing
Product Certifications
UL Listed || CSA
Product Or Component Type
contactor
[Ue] Rated Operational Voltage
600 V AC
Nema Degree Of Protection
not rated (open device)
Electrical Connection
screw clamp terminals
Maximum Horse Power Rating
10 hp 200 V AC || 15 hp 230 V AC || 25 hp 460 V AC || 25 hp 575 V AC
Line Rated Current
45 A

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 2, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 45 A, Reversing Capability Non-Reversing, Overall Height 5.47 in, Overall Width 2.16 in, Terminal Connection Type Screw Clamp Terminals, Series TeSys N, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 25 hp, Phase Three
