  13. 3 Phase Monitor Relay, SPDT, 480VAC, 6 Pin

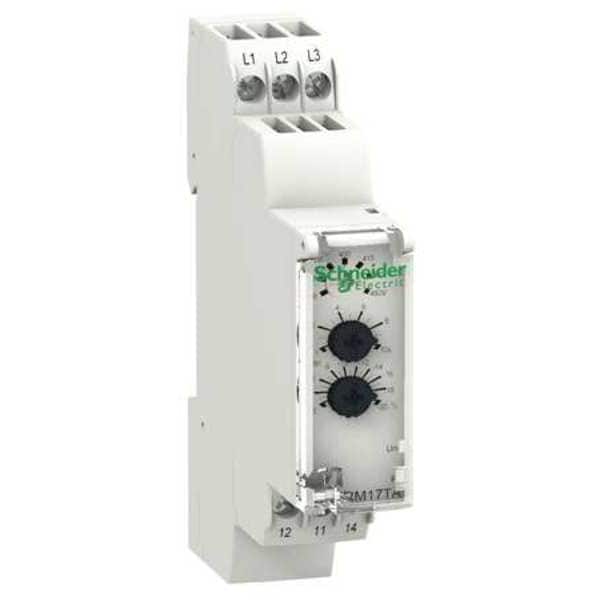

Schneider Electric 3 Phase Monitor Relay, SPDT, 480VAC, 6 Pin RM17TA00 - main

3 Phase Monitor Relay, SPDT, 480VAC, 6 Pin

  • Mfr # RM17TA00

  • Zoro # G4149144

product price: $222.99
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
208 to 480V AC
AC Contact Rating - Relay
3A @ 250V, 5A @ 24V
DC Contact Rating - Relay
1.00A @ 24V
Number of Pins - Relay
6
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RM17TA00
Zoro #
G4149144
UPC #
785901838890
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
2.82 in
Body Width - Relay
0.69 in
Body Depth - Relay
3.54 in
Body Height - Relay
2.82 in
Body Height
3.54 in
Body Depth
2.84 in
Overall Depth
2.84 in
Body Width
0.69 in

Details

Item
Phase Monitor Relay
Input or Control Voltage
208 to 480V AC
AC Contact Rating - Relay
3A @ 250V, 5A @ 24V
DC Contact Rating - Relay
1.00A @ 24V
Number of Pins - Relay
6
Mounting - Relay
DIN Rail
Contact Form - Relay
SPDT
Over Voltage
No
Under Voltage
No
Phase Loss Sensitivity
Yes
Phase Loss Time Delay
Instantly
Phase Reversal
Yes
Phase Reversal Time Delay
Instantly
Phase Unbalance
5 to 15%
Phase Unbalance Time Delay
0.1 to 10.0 sec
Restart
Auto
Restart Time Delay
1.5 sec
Trip Delay
0.10 to 10 sec.
Item - Relay
Phase Monitor Relay
Pick Up Range
190 to 500VAC
Base Type
DIN Rail
Contact Form
SPDT
Input Voltage
208 to 480V AC
Input or Control Voltage Range
208 to 480VAC
Voltage Unbalance
Less Than1
Number of Contacts
1
Phase
3
Drop-Out Range
75% to 95%
Pins
6
Power Rating
1250
Contact Amp Rating (Resistive)
5
Standards
C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed
Mounting Style
DIN Rail
Overvoltage
No
Base Shape
Square
IP Rating
IP30
Number of Pins
6
Mechanical Operating Durability
30,000,000
Contact Rating (DC)
1.00 A @ 24V
Housing Material
Plastic
Minimum Switching Current
10 mA
Monitored Parameters
Asymmetry, Phase Failure, Phase Sequence
Maximum Switching Capacity
1,250 VA
Frequency
50/60 Hz
Contact Rating (AC)
3 A @ 250V, 5 A @ 24V
Electrical Operating Durability
100,000
Maximum Switching Voltage
250V AC/DC
Maximum Operating Temperature
122 Degrees F
Maximum Switching Current
5 A
Weight
4.64 oz
Minimum Operating Temperature
-4 Degrees F
Current Rating
5 A
Power Consumption
1,250 VA

Description

Phase Monitor Relay, Base Shape Square, Contact Form SPDT, Contact Rating (AC) 3 A @ 250V, 5 A @ 24V, Contact Rating (DC) 1.00 A @ 24V, Current Rating 5 A, Flat Pin Width Not Applicable, Input Voltage 208 to 480V AC, Monitored Parameters Asymmetry, Phase Failure, Phase Sequence, Number of Pins 6, Restart Auto, Restart Time Delay 1.5 sec, IP Rating IP30, Mounting Style DIN Rail, Body Depth 2.84 in, Body Height 3.54 in, Body Width 0.69 in, Electrical Operating Durability 100,000
