Item - Relay

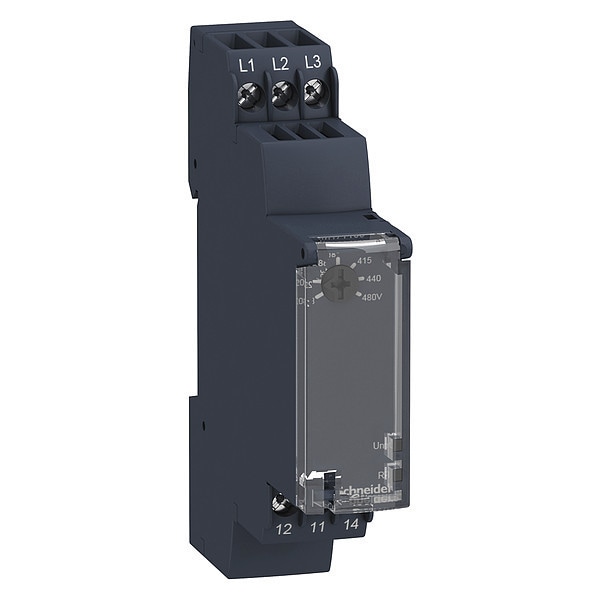

Phase Monitor Relay
AC Contact Rating - Relay
5A @ 250V
DC Contact Rating - Relay
7A @ 30V
Contact Form - Relay
SPDT
Phase Loss Sensitivity
No
Base Type - Plug In Relay
Octal
Input or Control Voltage
183 to 528V AC
Standards
C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed
Response Time
< 200 ms (in the event of a fault)
Maximum Switching Capacity
1,250 VA
Input Voltage
183 to 528V AC
Monitored Parameters
Phase Failure, Phase Sequence
Maximum Operating Temperature
122 Degrees F
Maximum Switching Voltage
250V AC/DC
Restart Time Delay
1.5 sec
Minimum Switching Current
10 mA
Mechanical Operating Durability
30,000,000
Power Consumption
1,250 VA
Contact Rating (DC)
7 A @ 30V
Maximum Switching Current
5 A
Electrical Operating Durability
100,000
Minimum Operating Temperature
-4 Degrees F
Contact Rating (AC)
5 A @ 250V
Product Or Component Type
3-phase control relay
Repeat Accuracy
0.5 % input and measurement circuit || 3 % time delay
Tightening Torque
0.6-1 N.m IEC 60947-1
Nominal Output Current
5A
Run-Up Delay At Power-Up
650 ms
Measurement Range
208...480 V voltage AC
Product Certifications
UL || GL || C-tick || GOST || CSA
Measurement Error
< 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation
Ambient Air Temperature For Storage
-40-70°C
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Contacts Type And Composition
1 C/O
Maximum Measuring Cycle
150 ms measurement cycle as true rms value
Voltage Range
208...480 V phase to phase
Relay Type
multifunction control relay
Ambient Air Temperature For Operation
-20-50°C
Local Signalling
for power ON LED (green) || for relay ON LED (yellow)
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Electrical Durability
100000 cycles
Operating Rate
<= 360 operations/hour full load
Power Consumption In Va
0-22 VA 400 V AC 50 Hz
Operating Position
any position without derating
Product Specific Application
for 3-phase supply
Overvoltage Category
III IEC 60664-1
Threshold Adjustment Voltage
-2...-17 % in the range 220 V AC || 2...20 % of Un selected || +2...+17 % in the range 480 V AC || -2...-12 % in the range 208 V AC
Shock Resistance
15 gn 11 ms IEC 60255-21-1
Dielectric Test Voltage
2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
Supply Frequency
50/60 Hz +/- 10 %
Reset Time
1500 ms time delay
Control Circuit Voltage Limits
12 % + 10 % Un
Switching Capacity In Va
1250 VA
Supply Voltage Limits
183-528 V AC
Measurement Voltage Limits
183-528 V AC
Relative Humidity
95-95 % 55-55°C IEC 60068-2-30
Adjustment Of Asymmetry Threshold
5...15 % of Un selected
Mechanical Durability
30000000 cycles
Electromagnetic Compatibility
emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2
Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
[Ui] Rated Insulation Voltage
400 V IEC 60664-1
[Uc] Control Circuit Voltage
208...480 V
Vibration Resistance
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Phase Failure Sensitivity
0.7 Un
Insulation Resistance
> 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
Relay Monitored Parameters
phase failure detection || phase sequence
Control Circuit Frequency
50...60 Hz +/- 10 %
Pollution Degree
3 IEC 60664-1
Non-Dissipating Shock Wave
4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
Utilisation Category
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
