Sealable Cover, Market Medium Form-Factors of 35 mm Width, Automatic Shutdown Management and Fault Information Reports, Multi Function Controller, 3-Phase Network Compatible, DIN Rail Mountable
Sealable Cover, Market Medium Form-Factors of 35 mm Width, Automatic Shutdown Management and Fault Information Reports, Multi Function Controller, 3-Phase Network Compatible, DIN Rail Mountable
emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
Time Delay Type
adjustable 0.3...30 s, 0 + 10 % on crossing the threshold
Mechanical Durability
30000000 cycles
Vibration Resistance
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Product Certifications
C-tick || GOST || CSA || GL || UL
Tightening Torque
0.6-1 N.m IEC 60947-1
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Power Consumption In Va
0-22 VA 400 V AC 50 Hz
Maximum Measuring Cycle
150 ms measurement cycle as true rms value
Housing Material
self-extinguishing plastic
Functionality
overvoltage and undervoltage detection
Compatibility Code
RM3
Relay Monitored Parameters
overvoltage and undervoltage between phases
Local Signalling
for power ON LED (green) || for relay ON LED (yellow)
Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Ambient Air Temperature For Operation
-20-50°C
Nominal Output Current
5A
Ambient Air Temperature For Storage
-40-70°C
Insulation Resistance
> 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
Electrical Durability
10000 cycles
Product Specific Application
for 3-phase supply
Non-Dissipating Shock Wave
4 kV
Supply Voltage Limits
194-528 V AC
Switching Capacity In Va
1250 VA
Operating Position
any position without derating
Relay Type
voltage control relay
Contacts Type And Composition
2 C/O
Overvoltage Category
III IEC 60664-1
Measurement Error
< 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
Minimum Switching Current
10 mA 5 V DC
Dielectric Test Voltage
2 kV AC 50 Hz, 1 min
Operating Rate
<= 360 operations/hour full load
Run-Up Delay At Power-Up
650 ms
Output Contacts
1 C/O + 1 C/O, 1 per threshold
Repeat Accuracy
+/- 0.5 % input and measurement circuit || +/- 1 % time delay
Relay Name
RM35UB3
Quality Labels
CE
Base Shape
Square
Input Voltage
194-528V AC
Description

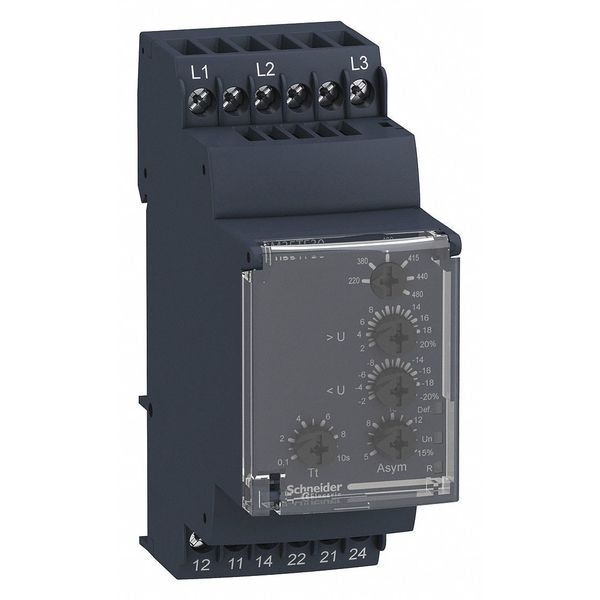

3 Phase Control Relay, Base Shape Square, Contact Form DPDT, Input Voltage 194-528V AC, Features Sealable Cover, Market Medium Form-Factors of 35 mm Width, Automatic Shutdown Management and Fault Information Reports, Multi Function Controller, 3-Phase Network Compatible, DIN Rail Mountable
