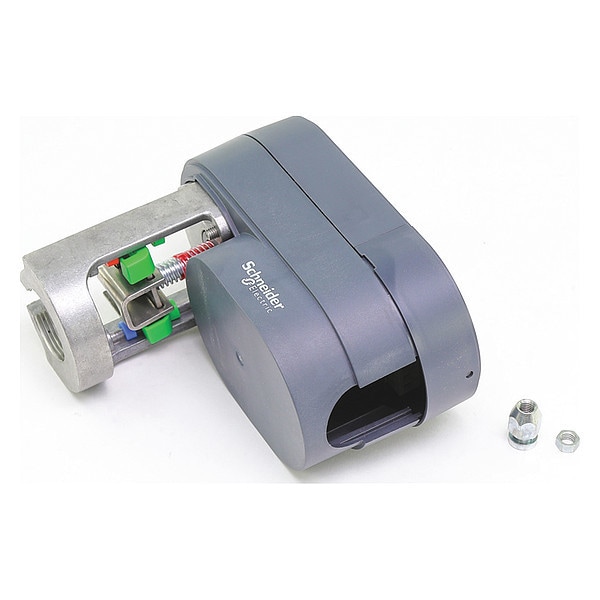

Actuator, 24V, Floating, 2-Position
- Mfr # MG350V-24F
- Zoro # G2086213
product price:Â
$
293.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Globe Valves
Includes
Spring Return
For Use With Mfr. Model Number
VF-7211-110-4-1
Input Voltage
20 to 29V DC, 24V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MG350V-24F
- Zoro #
- G2086213
- UPC #
- -
- Country of Origin
- Sweden
- Fits Brand
- Schneider Electric
- Application
- Globe Valves
- Item
- Actuator
- Includes
- Spring Return
- For Use With Mfr. Model Number
- VF-7211-110-4-1
- Input Voltage
- 20 to 29V DC, 24V AC
- Standards
- CE, cULus, EAC
- Product Type
- Actuator
- Minimum Operating Temperature
- 23 Degrees F
- NEMA Rating
- 2
- Compatible with Series
- VB-7000, VB-9000
- Plenum Rating
- Plenum Rated
- Maximum Operating Temperature
- 131 Degrees F
- Electrical Connection Type
- Screw Terminals
- Spring Return
- Non-Spring Return
- Power Rating
- 3.5W
- Contact Form
- SPST
- Power Consumption
- 5 VA
- Valve Application
- Valve
- Signal Type
- Floating Point
- Weight
- 1.6 lb
- IP Rating
- IP53
- Compatible Series
- VB-7000, VB-9000
- For Use With
- VB-7000, VB-9000
Dimensions
- Overall Depth
- 5 7/8 in
- Overall Height
- 5 in
- Overall Width
- 3 in
Description
Actuator, Valve Application Valve, Signal Type Floating Point, Input Voltage 20 to 29V DC, 24V AC, Contact Form SPST, Electrical Connection Type Screw Terminals, NEMA Rating 2, IP Rating IP53, Spring Return Non-Spring Return, Mounting Type Direct Mount, Maximum Operating Temperature 131 Degrees F, Minimum Operating Temperature 23 Degrees F, Compatible with Series VB-7000, VB-9000, Weight 1.6 lb, Overall Width 3 in, Application Globe Valves
