Shop SCHNEIDER ELECTRIC
See all product information

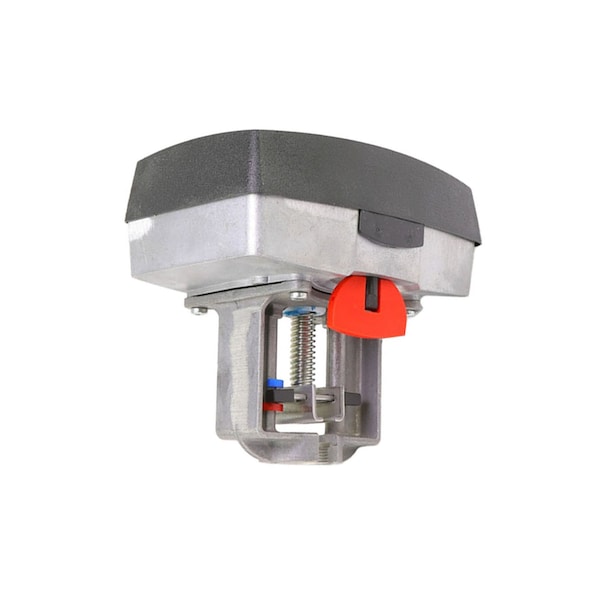

Actuator, 24V, Non Spring Return
Mfr # M400A-VB
Zoro # G2492695
product price:Â $451.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V
Features
Linear Stroke
Standards
CE Listed, cUL Listed, UKCA
Power Rating
20W; 30VA; 6VA
Signal Type
Proportional
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- M400A-VB
- Zoro #
- G2492695
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Overall Height
- 6 3/8 in
- Overall Width
- 6 1/4 in
- Overall Depth
- 4 5/8 in
Details
- Item
- Actuator, 24V, Non Spring Return
- Voltage
- 24V
- Features
- Linear Stroke
- Standards
- CE Listed, cUL Listed, UKCA
- Power Rating
- 20W; 30VA; 6VA
- Signal Type
- Proportional
- Spring Return
- Non-Spring Return
- Number of Auxiliary Switches
- 0
- Shaft Rotation
- CW
- Compatible with Series
- VB-7xxx
- Input Voltage
- 20 to 29V DC, 24V AC
- Contact Form
- SPDT
- NEMA Rating
- 2
- Electrical Connection Type
- Screw Terminals
- Housing Material
- Aluminum
- IP Rating
- IP54
- Valve Application
- Valve
- Plenum Rating
- Plenum Rated
- Operating Temperature - Maximum
- 149 Degrees F
- Operating Temperature - Minimum
- -13 Degrees F
Description
Actuator, Valve Application Valve, Signal Type Proportional, Input Voltage 20 to 29V DC, 24V AC, Contact Form SPDT, Electrical Connection Type Screw Terminals, NEMA Rating 2, IP Rating IP54, Spring Return Non-Spring Return, Shaft Rotation CW, Mounting Type Direct Mount, Maximum Operating Temperature 149 Degrees F, Minimum Operating Temperature -13 Degrees F, Compatible with Series VB-7xxx, Overall Width 6 1/4 in, Number of Auxiliary Switches 0
