- Item

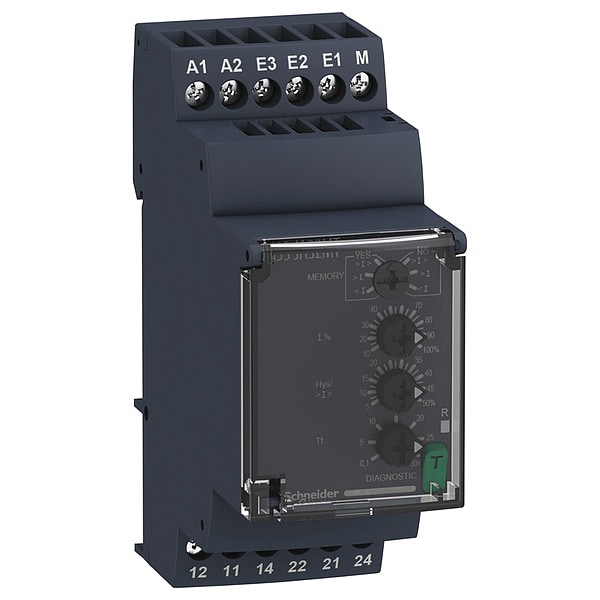

- Adjustable Current Sensing Relay
- AC Contact Rating - Relay
- 8A @ 380/415V
- Mounting - Relay
- DIN Rail
- Trip Delay
- 0.1 to 30 sec
- Status Indicator
- LED
- Type of Output
- Relay
- Item - Relay
- Current Sensing Relay
- Max. Inrush Current
- 8.0 A
- Input Voltage
- 380 to 415V AC
- Electrical Connection
- Terminal Strip
- Power Consumption
- 8 VA
- Minimum Switching Current
- 10 mA
- Mounting Style
- DIN Rail
- Frequency
- 50/60 Hz
- Weight
- 0.26 lb
- Maximum Switching Voltage
- 250V AC
- Current Rating
- 8 A
- Housing Material
- Self-Extinguishing Plastic
- Maximum Switching Capacity
- 2,000 VA
- Mechanical Operating Durability
- 10,000,000
- Monitored Parameters
- Overcurrent, Undercurrent
- Standards
- CCC, CE Certified, CSA Certified, EAC, EN/IEC 60255-1, GL, RCM, UL Listed
- Minimum Operating Temperature
- -40 Degrees F
- Electrical Operating Durability
- 100,000
- IP Rating
- IP20; IP30; IP50
- Number of Pins
- 12
- Contact Rating (AC)
- 8 A @ 380/415V
- Maximum Operating Temperature
- 158 Degrees F
- Run-Up Delay At Power-Up
- 0.3 s
- Dielectric Test Voltage
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP50 IEC 60529 front panel) || IP30 IEC 60529 housing)
- Supply Voltage Limits
- 323-456.5 V AC
- Reset Time
- 1500 ms at maximum voltage
- Mechanical Durability
- 10000000 cycles
- Switching Capacity In Va
- 2000 VA
- Output Contacts
- 2 C/O
- Measurement Error
- < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit || +/- 2 % time delay
- Local Signalling
- for relay ON LED (yellow) || for power ON LED (green)
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Internal Input Resistance
- 0.005 Ohm || 0.015 Ohm || 0.05 Ohm
- Environmental Characteristic
- 3K3 C
- Ambient Air Temperature For Operation
- -20-50°C 60 Hz || -20-60°C 50 Hz
- Relative Humidity
- 93-97 % 25-55°C IEC 60068-2-30
- Electromagnetic Compatibility
immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22 || emission standard for residential, commercial and light-industrial environments except radiated emission) EN/IEC 61000-6-3
- Measurement Range
- 0.15 to 1.5 A E1-M terminals || 0.5 to 5 A E2-M terminals || 1.5 to 15 A E3-M terminals || 150 mA to 15 A current AC/DC 50/60 Hz
- Contacts Material
- cadmium free
- Relay Monitored Parameters
- overcurrent or undercurrent detection || overcurrent or undercurrent in window mode
- Immunity To Microbreaks
- 50 ms
- Time Delay Type
- adjustable 0.1 to 30 s, +/- 10 % of the full scale value on crossing the threshold Tt
- Contacts Type And Composition
- 2 C/O
- Maximum Measuring Cycle
- 100 ms measurement cycle as true rms value
- Hysteresis
- 5-50 % adjustable threshold setting || 3-3 % fixed full scale for window mode
- Time Delay Drift
- <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
- Maximum Switching Current
- 8 A AC
- Resistance Across Terminals
- 0.005 Ohm E3-M terminals || 0.015 Ohm E2-M terminals || 0.05 Ohm E1-M terminals
- Setting Accuracy Of The Switching Threshold
- +/- 10 % of the full scale || +/- 20 % of the full scale
- Ambient Air Temperature For Storage
- -40-70°C
- Overvoltage Category
- III IEC 60664-1 || III UL 508
- Pollution Degree
- 3 IEC 60664-1 || 3 UL 508
- Maximum Power Consumption In Va
- 8 VA
- Insulation
- between supply and measurement
- Insulation Resistance
- > 100 MOhm 500 V DC IEC 60255-27
- Relay Type
- current control relay
- Utilisation Category
- AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
- Response Time
- <= 500 ms (on crossing the threshold)
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Threshold Setting
- 10 to 100 %
- Relay Name
- RM35JA
- Control Circuit Voltage Limits
- 15 % + 10 % Un
- Setting Accuracy Of Time Delay
- 0.916666666666667
- Connections - Terminals
screw terminals, 2 x 0.5 to 2 x 2.5 mm² AWG 20 to AWG 14) solid without cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mm² AWG 24 to AWG 16) flexible with cable end || screw terminals, 1 x 0.5 to 1 x 3.3 mm² AWG 20 to AWG 12) solid without cable end || screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 24 to AWG 14) flexible with cable end
- Product Certifications
- CCC || EAC || CSA || RCM || UL || GL || CE
- Electrical Durability
- 100000 cycles
- [Us] Rated Supply Voltage
- 380 to 415 V AC 50/60 Hz +/- 10 %
- Mounting Support
- 35 mm DIN rail conforming to EN/IEC 60715
- Product Or Component Type
- current control relay
- Nominal Output Current
- 8A
- Switching Threshold Drift
- <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
