Item

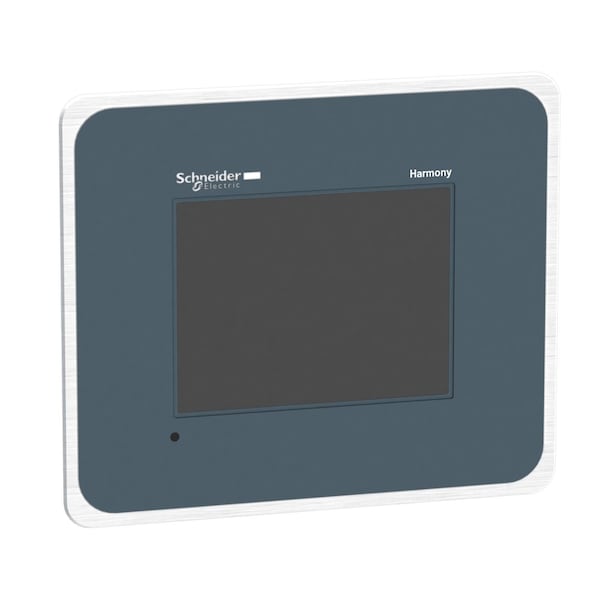

57 Color Touch Panel Qvga Stainless
Standards
IEC 61000-6-2, UL 508, IEC 61131-2
Product or Component Type
advanced touchscreen panel
Touch Panel
resistive film, 1000000 cycles
Operating Altitude
< 6561.68 ft (2000 m)
Ambient Air Temperature For Operation
0-55°C
Terminal Type
touchscreen display
Nema Degree of Protection
NEMA 4X front panel (indoor use)
[Us] Rated Supply Voltage
24 V DC
Integrated Connection Type
COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI, Ethernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
Brightness
16 levels by touch panel, 16 levels by software
Provided Equipment
1 protective cover
Ambient Air Temperature For Storage
-20-60°C
Product Mounting
flush mounting
Relative Humidity
10-90 % without condensation
Display Resolution
320 x 240 pixels QVGA
Ip Degree of Protection
IP20 IEC 60529 rear panel), IP66K IEC 60529 front panel), IP66K DIN 40050-9 front panel)
Battery Type
lithium internal RAM 100 days 5 day(s) 10 year(s)
Fixing Mode
by 8 nuts, by 4 L brackets
Resistance To Electrostatic Discharge
6 kV contact discharge IEC 61000-4-2 level 3
Display Type
backlit colour TFT LCD
Maximum Power Consumption In W
6.5 W when power is not supplied to external devices, 4.5 W when backlight is OFF, 5 W when backlight is dimmed, 10.5 W
Local Signalling
status LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting up, status LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmission, SD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
Data Backed Up
512 KB internal RAM SRAM)
Software Designation
Vijeo Designer configuration software >= V6.1
Supply Voltage Limits
19.2-28.8 V
Vibration Resistance
3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2, 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
Data Storage Equipment
SD card, <= 32 GB, SDHC card, <= 32 GB
Touch Sensitive Zone
1024 x 1024
Display Colour
65536 colours
Type of Cooling
natural convection
Front Material
stainless steel 304
Memory Description
flash EPROM, 96 MB
Range of Product
Harmony GTO
Backlight Lifespan
50000 hours white 25°C
Shock Resistance
147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
Product Certifications
KCC || CE || cULus || C-tick || UKCA || UKEX
Ip Degree Of Protection
IP20 IEC 60529 rear panel) || IP66K IEC 60529 front panel) || IP66K DIN 40050-9 front panel)
Type Of Cooling
natural convection
Downloadable Protocols
Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP
Character Font
Taiwanese (traditional Chinese); Japanese (ANK, Kanji); Chinese (simplified Chinese); ASCII; Korean
Display type
backlit colour TFT LCD
Product Or Component Type
advanced touchscreen panel
Nema Degree Of Protection
NEMA 4X front panel (indoor use)
