Shop SCHNEIDER ELECTRIC

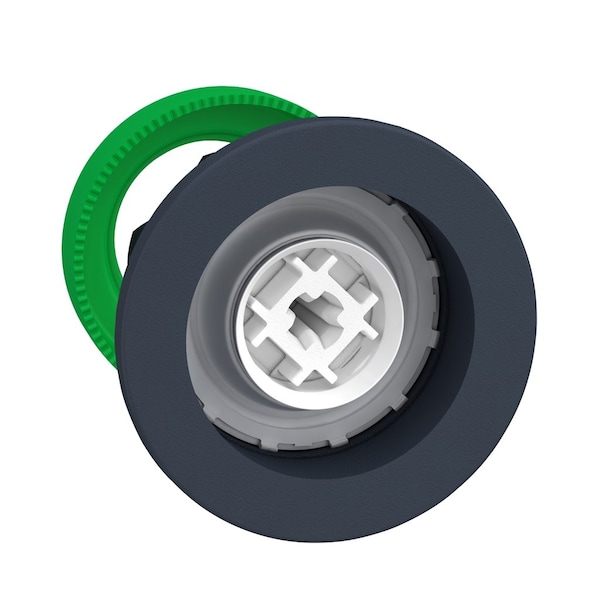

Antimicrobial Flush mounted push button head, Harmony XB5, plastic, without cap, 30mm, spring return

  • Mfr # ZB5FA0
  • Zoro # G7655568
product price:
$
8.59
/ea
Sold in multiples of 2 for $17.18

Key Features

Type of Operator
spring return
Standards
JIS C8201-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1, ISO 21702, ISO 22196:2011
IP Rating
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653.
Depth
30 mm
Width
37 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB5FA0
Zoro #
G7655568
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Depth
30 mm
Width
37 mm
Height
37 mm
Mounting Diameter
30.5 mm

Details

Item
Push Button No Cap
Type of Operator
spring return
Standards
JIS C8201-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1, ISO 21702, ISO 22196:2011
IP Rating
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653.
Header
built-in-flush
Device Short Name
ZB5
Protective Treatment
TH
Product Compatibility
ZBYF..., ZBZF32, ZBZF33, ZB5AZ
Ambient Air Temperature For Operation
-40-70°C
Range of Product
Harmony XB5
Head Type
built-in-flush
Ik Degree of Protection
IK03 conforming to IEC 50102
Operator Profile
without cap
Ip Degree of Protection
IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Shape of Signaling Unit Head
round
Mechanical Durability
10000000 cycles
Electrical Composition Code
C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting
Overvoltage Category
class II IEC 60536
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6, 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Bezel Material
dark grey plastic
Product or Component Type
head for non-illuminated push-button
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Type Of Operator
spring return

Description

Push Button No Cap
