Shop SCHNEIDER ELECTRIC

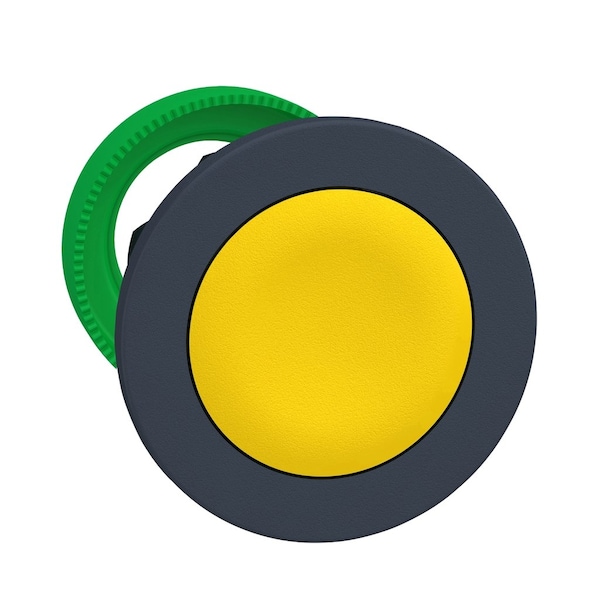

Antimicrobial Flush mounted push button head, Harmony XB5, plastic, yellow, 30mm, spring return, unmarked

  • Mfr # ZB5FA5
  • Zoro # G5956962
product price:
$
9.99
/ea

Key Features

Standards
UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
Bezel Material
dark grey plastic
Product Or Component Type
head for non-illuminated push-button
Product Certifications
CSA || BV || LROS (Lloyds register of shipping) || DNV || GL || UL Listed
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB5FA5
Zoro #
G5956962
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Cad Overall Width
37 mm
Cad Overall Height
37 mm
Mounting Diameter
30.5 mm
Cad Overall Depth
30 mm

Details

Item
Push Button Yellow Cap
Standards
UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
Bezel Material
dark grey plastic
Product Or Component Type
head for non-illuminated push-button
Product Certifications
CSA || BV || LROS (Lloyds register of shipping) || DNV || GL || UL Listed
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Head Type
built-in-flush
Type Of Operator
spring return
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Device Presentation
basic element
Operator Profile
yellow flush, unmarked
Ik Degree Of Protection
IK03 IEC 50102
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-40-70°C
Mechanical Durability
10000000 cycles
Device Short Name
ZB5
Protective Treatment
TH
Product Compatibility
ZBYF to || ZBZF32 || ZBZF33 || ZB5AZ
Overvoltage Category
class II IEC 60536
Shape Of Signaling Unit Head
round
Range of Product
Harmony XB5

Description

Push Button Yellow Cap
