  15. Antimicrobial Flush mounted selector switch head, Harmony XB5, plastic, black, 30mm, 2 positions, spring return right to left

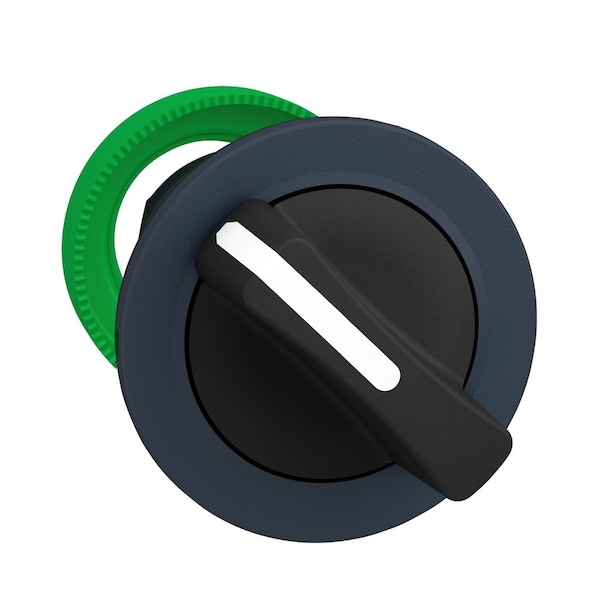

Schneider Electric Antimicrobial Flush mounted selector switch head, Harmony XB5, plastic, black, 30mm, 2 positions, spring return right to left ZB5FD4 - main

Antimicrobial Flush mounted selector switch head, Harmony XB5, plastic, black, 30mm, 2 positions, spring return right to left

  • Mfr # ZB5FD4

  • Zoro # G7655778

product price: $28.35
/ea

Key Features

Height
37 mm
Width
37 mm
Standards
UL 508, JIS C8201-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, JIS C8201-1, ISO 21702, ISO 22196:2011
Type of Operator
right to left spring return
Bezel Material
dark grey plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FD4
Zoro #
G7655778
UPC #
-
Country of Origin
France

Dimensions

Height
37 mm
Width
37 mm
Mounting Diameter
30.5 mm
Cad Overall Height
37 mm
Cad Overall Depth
46 mm
Cad Overall Width
37 mm

Details

Item
Selector Switch 2 Pos Momentary
Standards
UL 508, JIS C8201-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, JIS C8201-1, ISO 21702, ISO 22196:2011
Type of Operator
right to left spring return
Bezel Material
dark grey plastic
Shape of Signaling Unit Head
round
Ik Degree of Protection
IK03 conforming to IEC 50102
Mechanical Durability
1000000 cycles
Ambient Air Temperature For Storage
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ip Degree of Protection
IP66 IEC 60529, IP67 IEC 60529, IP69K, IP69
Range of Product
Harmony XB5
Operator Profile
black standard handle
Ambient Air Temperature For Operation
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Position Information
2 positions 90°
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
basic element
Electrical Composition Code
C3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting
Nema Degree of Protection
NEMA 13, NEMA 4X
Product or Component Type
head for selector switch
Protective Treatment
TH
Overvoltage Category
class II IEC 60536
Device Short Name
ZB5
Head Type
built-in-flush
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Or Component Type
head for selector switch
Product Certifications
UL Listed || DNV || LROS (Lloyds register of shipping) || GL || CSA || BV
Type Of Operator
right to left spring return
Shape Of Signaling Unit Head
round
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
Ik Degree Of Protection
IK03 IEC 50102

Description

Selector Switch 2 Pos Momentary
