  15. Auxiliary Contact, 10 A, 690V AC, Gray

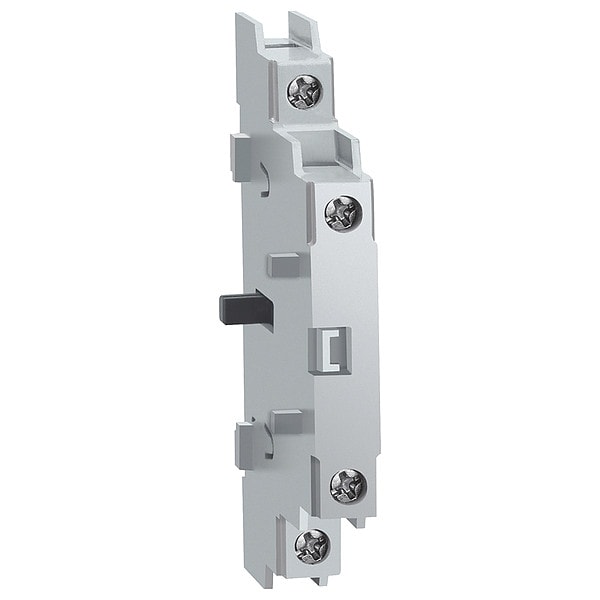

Schneider Electric Auxiliary Contact, 10 A, 690V AC, Gray VLSA10R1E - main

Auxiliary Contact, 10 A, 690V AC, Gray

  • Mfr # VLSA10R1E

  • Zoro # G3203375

product price: $40.59
/ea

Key Features

Color
Gray
Max. Voltage
8 kV
For Use With
TeSys VLS Series
Standards
CSA C22.2 No 14, IEC 60947-1, IEC 60947-3, IEC 60947-5, UL 508
Description/Special Features
Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VLSA10R1E
Zoro #
G3203375
UPC #
785901568438
Country of Origin
Italy

Dimensions

Height
3.07 in
Depth
1.82 in
Width
0.47 in

Details

Item
Auxiliary Contact Block
Color
Gray
Max. Voltage
8 kV
For Use With
TeSys VLS Series
Standards
CSA C22.2 No 14, IEC 60947-1, IEC 60947-3, IEC 60947-5, UL 508
Description/Special Features
Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free
Voltage
690V AC
Maximum Voltage
690V AC
Includes
1 NO
Current Rating
10 A
Mounting Mechanism
DIN Rail
Product Type
Auxiliary Contact Block
Compatible with Manufacturer Model Number
VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1
Compatible Manufacturer Part Number
VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1
Compatible Manufacturer Model Number
VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1
For Use With Mfr. Model Number
VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1
Ip Degree Of Protection
IP20 conforming to IEC 60529
Fire Resistance
850°C IEC 60695-2-11
Performance Level
high performance
[Uimp] Rated Impulse Withstand Voltage
8 kV
Device Short Name
VLSA
Contacts Type And Composition
1 NC
Contact Operation
early-break 1 NC
[Ie] Rated Operational Current
6 A AC-15)24 V AC || 6 A AC-15)48 V AC || 6 A AC-15)127 V AC || 3 A AC-15)240 V AC || 3 A DC-13)24 V DC || 1.5 A DC-13)48 V DC || 0.55 A DC-13)127 V DC || 0.27 A DC-13)240 V DC
Ambient Air Temperature For Operation
-25-55°C
Product Or Component Type
auxiliary contact block
Mechanical Robustness
vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Mounting Support
DIN rail
[Ith] Conventional Free Air Thermal Current
10 A 55°C
Tightening Torque
control circuit 0.8-1 N.m screw clamp terminals
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
Mounting Location
right || left
Product Certifications
cULus || GL
Network Type
DC || AC
Minimum Output Current
10 mA
Network Frequency
50/60 Hz
Connections - Terminals
control circuit screw clamp terminals 2.5-2.5 mm² flexible - without cable end
Range Compatibility
TeSys (TeSys VARIO LS) VLS3P || TeSys (TeSys VARIO LS) VLS1P
Minimum Output Voltage
5 V
[Ithe] Conventional Enclosed Thermal Current
10 A
Range
TeSys
Compatible with Manufacturer Model No.
VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1
Compatible with Mfr. Model No.
VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1
For Use with Mfr Model Number
VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1
Compatible Pump Manufacturer Part Number
VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1
Compatible Mfr. Model Number
VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1

Description

Auxiliary Contact, Color Gray, Compatible Grainger Part Number 615A62, 615A64, 615A66, 615A67, 615A70, Compatible Manufacturer Model Number VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1, Current Rating 10 A, Depth 1.82 in, For Use With TeSys VLS Series, Height 3.07 in, Includes 1 NO, Maximum Voltage 690V AC, Mounting Mechanism DIN Rail, Product Type Auxiliary Contact Block, Standards CSA C22.2 No 14, IEC 60947-1, IEC 60947-3, IEC 60947-5, UL 508, Width 0.47 in

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
