- MFR #
- XB5S6B2L2
- Zoro #
- G110063107
- UPC #
- -
- Country of Origin
- France
- Item

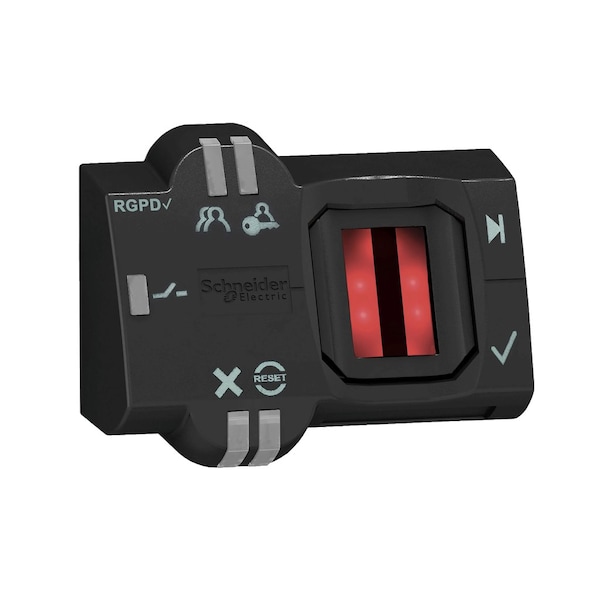

- BIOMETRIC SWITCH, 2 FIXED POSITIONS, CAB
- Standards
- IEC 61000-6-4, IEC 61000-6-2
- Memory Usage
- 200 users with up to 2 fingerprints per user
- Maximum Delay Recovery
- 1.5 s
- Range of Product
- Harmony XB5S
- Function of Module
- bi-stable
- Operator Position Information
- 2 positions
- Connections - Terminals
- 1 pre-wired cable, 3 x 0.34 mm²
- Cable Insulation Material
- PvR
- Nema Degree of Protection
- NEMA 12
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Maximum Delay First Up
- 3 s + 0.5 ms per user registered
- Bezel Material
- plastic
- Operator Profile
- fingerprint reader
- Product or Component Type
- biometric switch RGPD
- Type of Operator
- stay put
- Device Short Name
- XB5S
- Ambient Air Temperature For Operation
- -5-50°C
- Current Consumption
- <= 70 mA no-load
- Output Type
- PNP
- [Us] Rated Supply Voltage
- 24 V DC
- Short-Circuit Protection
- 250 mA external fuse gG
- Marking
- CE
- Ip Degree of Protection
- IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
- Local Signalling
- for output state indicator 1 LED (green), for administrator's registration mode 1 LED (orange), for operator's registration mode 1 LED (orange), for error 1 LED (red), for reset 1 LED (red)
- Maximum Delay Response
- 1.5 s
- Operating Position
- horizontal position, flat surface installation, vertical surface installation
- [Ures] Residual Voltage
- 1 V closed state
- Maximum Switching Current
- 200 mA
- Protection Type
- short-circuit, reverse polarity, overload protection
- Supply Voltage Limits
- 20-30 V DC
- Ambient Air Temperature For Storage
- -25-70°C
- Vibration Resistance
- +/- 3 mm 5-9 Hz)IEC 60068-2-6, 1 gn 9-500 Hz)IEC 60068-2-6
- Enclosure Material
- polyamide PA66
- Product Specific Application
- industrial machines, materials handling
- Electrical Connection
- free wire ends 3 2 m
