  7. Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC

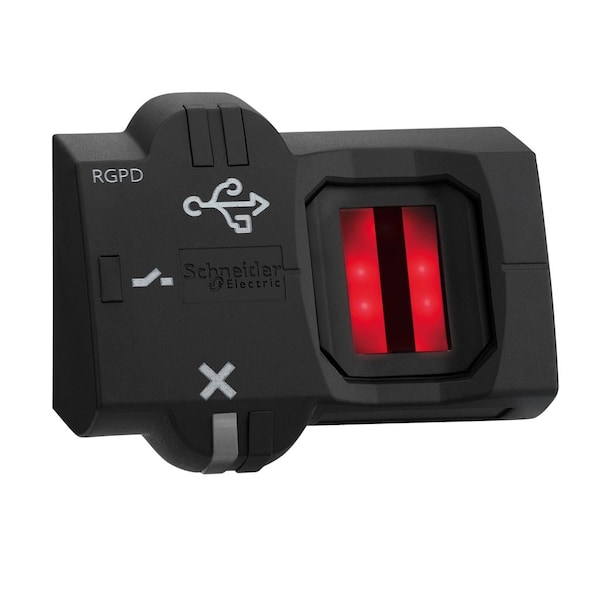

Schneider Electric Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC XB5S7B2M12 - main

Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC

  • Mfr # XB5S7B2M12

  • Zoro # G510839395

product price:  $427.99
/ea
Free Shipping & Returns

Key Features

Standards
IEC 61000-6-2, IEC 61000-6-4
Local Signalling
for output state indicator 1 LED (green), for administrator's registration mode 1 LED (orange), for operator's registration mode 1 LED (orange), for error 1 LED (red), for reset 1 LED (red)
Range of Product
Harmony XB5S
Output Type
PNP
Memory Usage
200 users with up to 2 fingerprints per user
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XB5S7B2M12
Zoro #
G510839395
UPC #
-
Country of Origin
France

Dimensions

Mounting Diameter
22 mm

Details

Item
BIOMETRIC SWITCH, 1 MOMENTARY, CONNECTOR
Standards
IEC 61000-6-2, IEC 61000-6-4
Local Signalling
for output state indicator 1 LED (green), for administrator's registration mode 1 LED (orange), for operator's registration mode 1 LED (orange), for error 1 LED (red), for reset 1 LED (red)
Range of Product
Harmony XB5S
Output Type
PNP
Memory Usage
200 users with up to 2 fingerprints per user
Vibration Resistance
+/- 3 mm 5-9 Hz)IEC 60068-2-6, 1 gn 9-500 Hz)IEC 60068-2-6
Maximum Delay Recovery
1.5 s
Maximum Delay First Up
3 s + 0.5 ms per user registered
Type of Operator
momentary
Current Consumption
<= 70 mA no-load
Device Short Name
XB5S
[Ures] Residual Voltage
1 V closed state
Marking
CE
Protection Type
overload protection, short-circuit, reverse polarity
Ambient Air Temperature For Operation
-5-50°C
Nema Degree of Protection
NEMA 12
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Product Specific Application
industrial machines, materials handling
Function of Module
monostable
Operating Position
horizontal position, flat surface installation, vertical surface installation
Supply Voltage Limits
20-30 V DC
Bezel Material
plastic
Enclosure Material
polyamide PA66
Maximum Switching Current
200 mA
Ambient Air Temperature For Storage
-25-70°C
Ip Degree of Protection
IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
Maximum Delay Response
1.5 s
Electrical Connection
M12 connector 0.2 m
Short-Circuit Protection
250 mA external fuse gG
Cable Insulation Material
PvR
Product or Component Type
biometric switch RGPD
[Us] Rated Supply Voltage
24 V DC
Operator Profile
fingerprint reader

Description

BIOMETRIC SWITCH, 1 MOMENTARY, CONNECTOR
