  13. Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by 2m cable, 24V AC DC

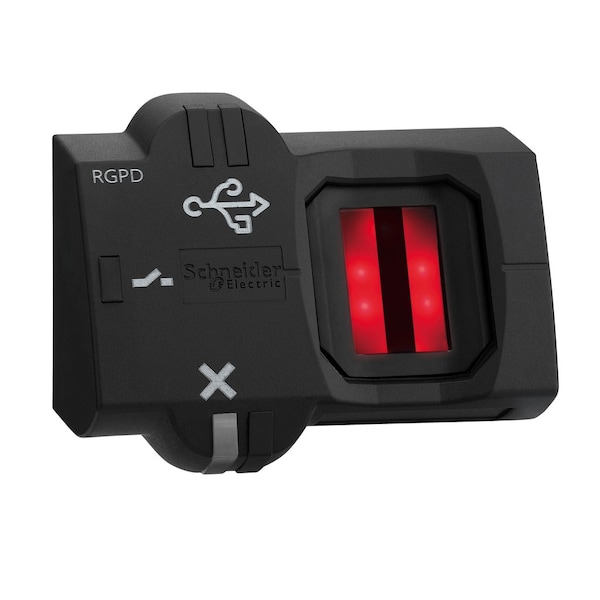

Schneider Electric Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by 2m cable, 24V AC DC XB5S9B2L2 - main

Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by 2m cable, 24V AC DC

  • Mfr # XB5S9B2L2

  • Zoro # G910063109

product price: $589.99
/ea
Free Shipping & Returns

Key Features

Standards
IEC 61000-6-4, IEC 61000-6-2
Product Specific Application
materials handling, industrial machines
Nema Degree of Protection
NEMA 12
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Ip Degree of Protection
IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5S9B2L2
Zoro #
G910063109
UPC #
-
Country of Origin
France

Dimensions

Mounting Diameter
22 mm

Details

Item
BIOMETRIC SWITCH, USB COMMUNICATION, 1 M
Standards
IEC 61000-6-4, IEC 61000-6-2
Product Specific Application
materials handling, industrial machines
Nema Degree of Protection
NEMA 12
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Ip Degree of Protection
IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
Device Short Name
XB5S
Type of Operator
momentary
Vibration Resistance
+/- 3 mm 5-9 Hz)IEC 60068-2-6, 1 gn 9-500 Hz)IEC 60068-2-6
Short-Circuit Protection
250 mA external fuse gG
Operator Profile
fingerprint reader
Memory Usage
200 users with up to 2 fingerprints per user
Product or Component Type
biometric switch RGPD
Enclosure Material
polyamide PA66
Maximum Switching Current
200 mA
Supply Voltage Limits
20-30 V DC
[Us] Rated Supply Voltage
24 V DC
Communication Port Protocol
USB
Connector Type
USB type A male 1 m
Ambient Air Temperature For Operation
-5-50°C
Software Designation
XB5SSoft
Ambient Air Temperature For Storage
-25-70°C
Marking
CE
Protection Type
reverse polarity, short-circuit, overload protection
Maximum Delay Response
1.5 s
Local Signalling
for output state indicator 1 LED (green), for error 1 LED (red)
Maximum Delay First Up
3 s + 0.5 ms per user registered
Range of Product
Harmony XB5S
Output Type
PNP
Electrical Connection
free wire ends 3 2 m
Maximum Delay Recovery
1.5 s
Current Consumption
<= 70 mA no-load
Bezel Material
plastic
[Ures] Residual Voltage
1 V closed state
Operating Position
vertical surface installation, flat surface installation, horizontal position
Cable Insulation Material
PvR
Function of Module
monostable
Connections - Terminals
1 pre-wired cable, 3 x 0.11 mm²

Description

BIOMETRIC SWITCH, USB COMMUNICATION, 1 M
