  11. Combo Busbar, 100A, 415V AC, 1 Phase

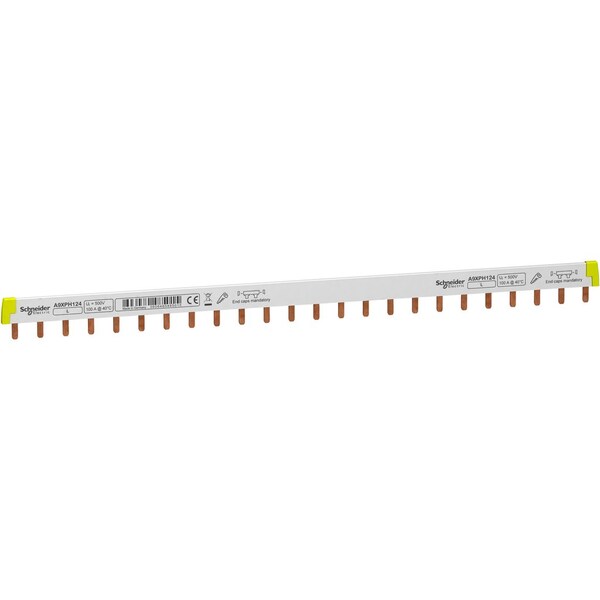

Schneider Electric Combo Busbar, 100A, 415V AC, 1 Phase A9XPH124 - main

Combo Busbar, 100A, 415V AC, 1 Phase

  • Mfr # A9XPH124

  • Zoro # G7685359

product price: $49.45
/ea
Sold in multiples of 10 for $494.50

Key Features

Amps
100A
Voltage
415V AC
Number of Poles
1
Phase/Wire
1 Phase
Width
430 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A9XPH124
Zoro #
G7685359
UPC #
-
Country of Origin
Germany

Dimensions

Width
430 mm

Details

Item
Combo Busbar
Amps
100A
Voltage
415V AC
Number of Poles
1
Phase/Wire
1 Phase
Standards
IEC 60947-7-1, IEC 61439-2
Color
White RAL 9003)
Ip Degree of Protection
IP20 with end-pieces and tooth covers
Insulation
insulated
[Ie] Rated Operational Current
100 A 40°C
Connector Type
tooth
Distance Between Way
18 mm
Range
Acti9
Fire Resistance
960°C 30 s ) IEC 60695-2-1
9 mm Pitches
48
Number of Ways
24 ways 1 L
Mounting Mode
horizontal
Marking
L
[Ui] Rated Insulation Voltage
500 V AC IEC 61439-2
Device Presentation
cuttable
Connection Pitch
18 mm
Range Compatibility
Acti 9 Acti9 iC60, Acti 9 Acti9 iK60, Acti 9 Acti9 iID, Acti 9 Acti9 iID K, Acti 9 Acti9 iSW, Acti 9 Acti9 iSW-NA, Multi9 Multi9 C60
Mounting Location
top or bottom tunnel type terminals, top or bottom double terminal
Lines Description
1L
[Ue] Rated Operational Voltage
415 V AC
Pollution Degree
3 IEC 60947-7-1
Number Of Ways
24 ways 1 L
9 Mm Pitches
48
Ip Degree Of Protection
IP20 with end-pieces and tooth covers
Total Number Of 18 Mm Modules
24
Enclosure Rating
IP20 with end-pieces and tooth covers

Description

Acti 9 - comb busbar - 1L - 18 mm pitch
