  6. Combo Busbar, 100A, 415V AC, 1 Phase

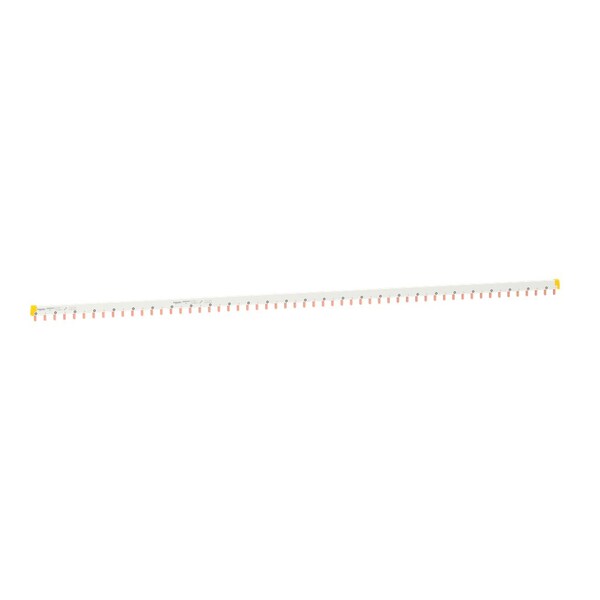

Schneider Electric Combo Busbar, 100A, 415V AC, 1 Phase A9XPH257 - main

Combo Busbar, 100A, 415V AC, 1 Phase

  • Mfr # A9XPH257

  • Zoro # G200905676

product price:  $172.99
/ea
Free Shipping & Returns

Key Features

Amps
100A
Voltage
415V AC
Number of Poles
2
Phase/Wire
1 Phase
Enclosure Rating
IP20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A9XPH257
Zoro #
G200905676
UPC #
-
Country of Origin
Germany

Dimensions

Width
1000 mm

Details

Item
Combo Busbar
Amps
100A
Voltage
415V AC
Number of Poles
2
Phase/Wire
1 Phase
Enclosure Rating
IP20
Standards
IEC 60947-7-1, IEC 61439-2
Color
White RAL 9003)
[Ie] Rated Operational Current
100 A 40°C
[Ue] Rated Operational Voltage
415 V AC
Range Compatibility
Acti 9 Acti9 iC60, Acti 9 Acti9 iK60, Acti 9 Acti9 iID, Acti 9 Acti9 iID K, Acti 9 Acti9 iSW, Acti 9 Acti9 iSW-NA, Multi9 Multi9 C60
Connector Type
tooth
Mounting Mode
horizontal
Range
Acti9
Pollution Degree
3 IEC 60947-7-1
Ip Degree of Protection
IP20 with end-pieces and tooth covers
Insulation
insulated
Connection Pitch
18 mm
Lines Description
1L + N
Device Presentation
cuttable
Marking
N L
Fire Resistance
960°C 30 s ) IEC 60695-2-1
[Ui] Rated Insulation Voltage
500 V AC IEC 61439-2
9 mm Pitches
114
Number of Ways
28 ways N + 1 L
Mounting Location
top or bottom tunnel type terminals, top or bottom double terminal
Provided Equipment
set of 10 end piece
Distance Between Way
36 mm
9 Mm Pitches
114
Ip Degree Of Protection
IP20 with end-pieces and tooth covers
Total Number Of 18 Mm Modules
57
Number Of Ways
28 ways N + 1 L

Description

Acti 9 - comb busbar - 1L+N - 18 mm pitc
