  11. Combo Busbar, 100A, 415V AC, 3 Phase

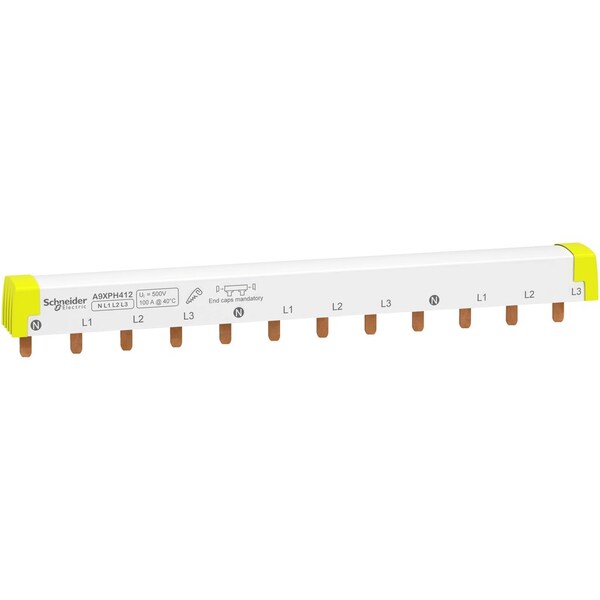

Schneider Electric Combo Busbar, 100A, 415V AC, 3 Phase A9XPH412 - main

Combo Busbar, 100A, 415V AC, 3 Phase

  • Mfr # A9XPH412

  • Zoro # G700905664

product price: $69.45
/ea
Sold in multiples of 5 for $347.25

Key Features

Amps
100A
Voltage
415V AC
Number of Poles
4
Phase/Wire
3 Phase
Width
220 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A9XPH412
Zoro #
G700905664
UPC #
-
Country of Origin
Germany

Dimensions

Width
220 mm

Details

Item
Combo Busbar
Amps
100A
Voltage
415V AC
Number of Poles
4
Phase/Wire
3 Phase
Standards
IEC 60947-7-1 || IEC 61439-2
Color
White RAL 9003)
Fire Resistance
960DegC 30 s ) IEC 60695-2-1
Ip Degree Of Protection
IP20 with end-pieces and tooth covers
Pollution Degree
3 IEC 60947-7-1
Mounting Location
top or bottom tunnel type terminals || top or bottom double terminal
Marking
N L1 L2 L3
Range Compatibility
Acti 9 (Acti9 iC60) || Acti 9 (Acti9 iK60) || Acti 9 (Acti9 iID) || Acti 9 (Acti9 iID K) || Acti 9 (Acti9 iSW) || Acti 9 (Acti9 iSW-NA) || Multi9 (Multi9 C60)
Lines Description
3L + N
Connector Type
tooth
Number Of Ways
3 ways N + 3 L
Range
Acti9
[Ue] Rated Operational Voltage
415 V AC
Device Presentation
cuttable
Distance Between Way
72 mm
[Ie] Rated Operational Current
100 A 40DegC
9 Mm Pitches
24
Total Number Of 18 Mm Modules
12
Connection Pitch
18 mm
Mounting Mode
horizontal
[Ui] Rated Insulation Voltage
500 V AC IEC 61439-2
Insulation
insulated
Enclosure Rating
IP20 with end-pieces and tooth covers

Description

Acti 9 - comb busbar - 3L+N - 18 mm pitc
