Item

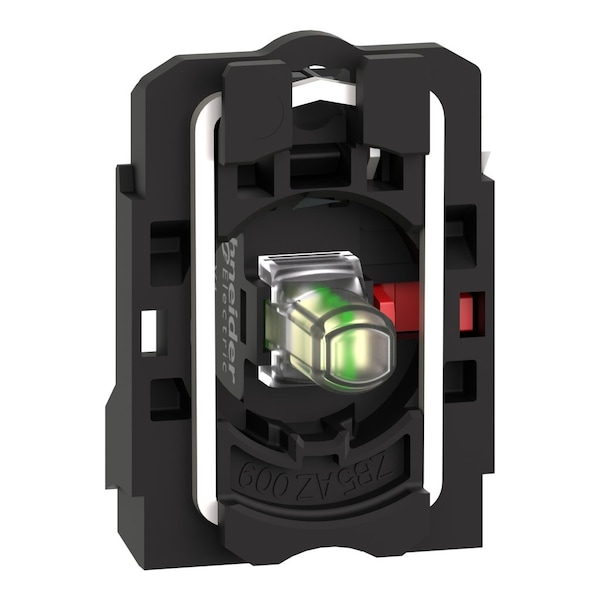

Light Block Assembly
Operator Illumination
Non-Illuminated
Terminal Connection
Screw Clamp
Standards
IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, UL 508, JIS C8201-1
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Contacts Material
silver alloy (Ag/Ni)
Range of Product
Harmony XB5
[Ui] Rated Insulation Voltage
600 V 3)IEC 60947-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ith] Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Ambient Air Temperature For Operation
-40-70°C
Contact Operation
slow-break
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6
Operating Force
2 N NC changing electrical state
Light Source Colour
white
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Terminals Description Iso N°1
(11-12)NC
Resistance To Fast Transients
2 kV IEC 61000-4-4
Electromagnetic Emission
class B IEC 55011
Light Block Supply
direct
Fixing Collar Material
plastic
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Service Life
100000 h at rated voltage and 25°C
Current Consumption
18 mA
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Operating Travel
1.5 mm NC changing electrical state), 4.3 mm total travel)
Contacts Type And Composition
1 NC
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Device Presentation
basic sub-assemblies
Surge Withstand
1 kV IEC 61000-4-5
Ambient Air Temperature For Storage
-40-70°C
Mechanical Durability
5000000 cycles
Supply Voltage Limits
19.2-30 V DC, 21.6-26.4 V AC
Light Source
universal LED
Product or Component Type
complete body/contact assembly and light block
Electrical Shock Protection Class
class II IEC 60536
Positive Opening
with IEC 60947-5-1 appendix K
Shape of Screw Head
cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Product Certifications
UL Listed || GL || DNV || BV || CSA || LROS (Lloyds register of shipping)
Product Or Component Type
complete body/contact assembly and light block
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
