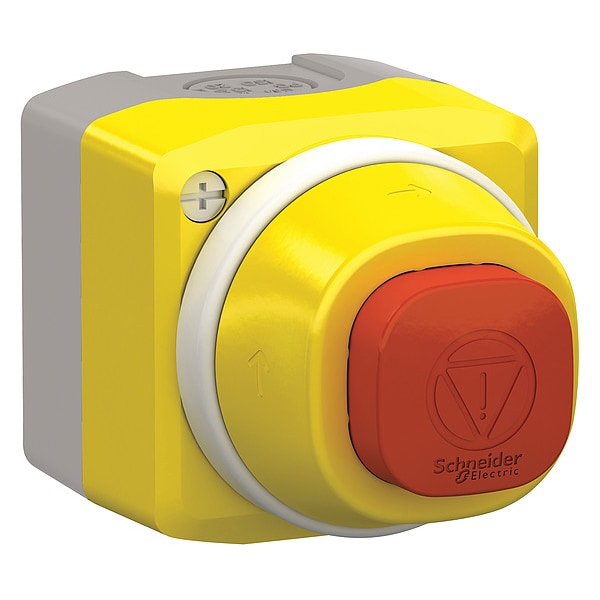

Complete Control Station, 22 mm, 1NO/1NC

  • Mfr # XALK84W3BE

  • Zoro # G3547644

product price:  $170.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XALK84W3BE
Zoro #
G3547644
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Size
22 mm
Width
2.68 in
Height
2.68 in
Depth
3.78 in
Overall Height
2.68 in
Overall Width
2.68 in
Manufacturer Warranty Length
18 mo
Hub Size - Maximum
9/16 in
Overall Depth
3.78 in

Details

Item
Push Button with Contact Block
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Illuminated
Head Color
Red
Head Material
Polycarbonate
Terminal Connection
Screw Clamp
Standards
CSA, UL Listed
Series
Harmony
Enclosure Color
Light Gray/Yellow
Contact Rating
0.1A @ 600 V DC, 0.27A @ 250 V DC-13, 0.55A @ 125 V DC-13, 1.2A @ 600V AC, 1A @ 120V AC, 3A @ 240V AC
Contact Form
1NO/1NC
Enclosure Material
Plastic
Legend
Emergency Stop
Lamp Module Voltage
24V AC/DC
NEMA Rating
12, 13, 4, 4X
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Operator Color
Red
Type of Operator
40mm Mushroom Head
Material
polycarbonate
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Number of Operators
1
IP Rating
IP66, IP67, IP69, IP69K
Number of Pilot Lights
1
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 13, 4, 4X
Operating Temperature - Maximum
158 Degrees F
Operator Configuration
Mushroom Head Push Button
Hub Style
Feed-Thru
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Product Type
Control Station
Operating Temperature - Minimum
-40 Degrees F
Number of Speeds
1
Pilot Light Color
Yellow
Resistance To Electrostatic Discharge
4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Control Station Composition
1 mushroom head push-button, red 1 NO + 1 NC
Ambient Air Temperature For Operation
-40-70°C
Operating Force
44 N
Operators Description
red unmarked 1 NO + 1 NC
Product Destination
for XB5 Ø 22 mm control and signalling units
Device Short Name
XALK
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Operator Profile
red square 32 mm
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Contacts Material
silver alloy (Ag/Ni)
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
Reset
turn to release
Product Certifications
UL Listed || CSA
Protective Treatment
TH
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Contact Operation
slow-break
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Electrical Insulation Class
class II IEC 61140
Tightening Torque
0.8-1.2 N.m EN/IEC 60947-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
[Us] Rated Supply Voltage
24 V AC/DC
Cable Entry
1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Colour Of Base Of Enclosure
light grey RAL 7035)
Control Station Application
emergency switching off function || emergency stop function
Mechanical Durability
300000 cycles
Ambient Air Temperature For Storage
-40-70°C
Colour Of Cover
yellow RAL 1021)
Ik Degree Of Protection
IK05 EN 50102
Positive Opening
with EN/IEC 60947-5-1 appendix K
Product Or Component Type
complete control station
Operating Travel
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1

Description

Control Station, Number of Operators 1, Number of Pilot Lights 1, Size 22 mm, Legend Emergency Stop, Type of Operator 40mm Mushroom Head, Action Maintained, Operator Color Red, Contact Form 1NO/1NC, NEMA Rating 12, 13, 4, 4X, Contact Rating 0.1A @ 600 V DC, 0.27A @ 250 V DC-13, 0.55A @ 125 V DC-13, 1.2A @ 600V AC, 1A @ 120V AC, 3A @ 240V AC, IP Rating IP66, IP67, IP69, IP69K, Height 2.68 in, Width 2.68 in, Depth 3.78 in, Enclosure Material Plastic, Enclosure Color Light Gray/Yellow

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
