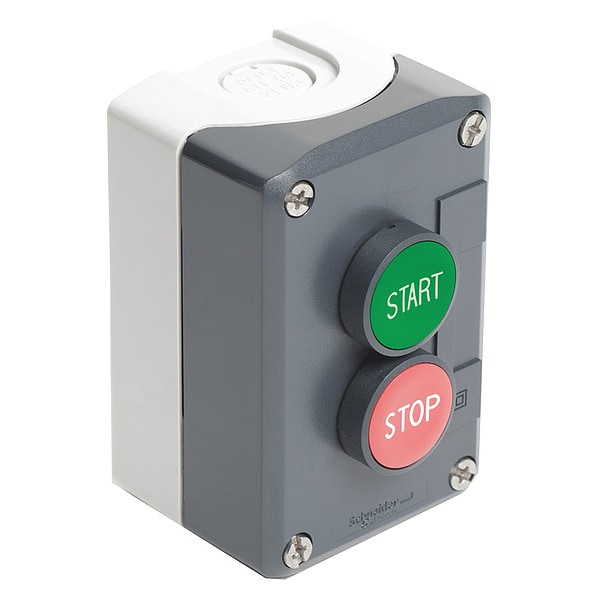

  15. Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, green START 1NO red STOP 1NC, spring return
Schneider Electric Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, green START 1NO red STOP 1NC, spring return XALD215H7 - main

Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, green START 1NO red STOP 1NC, spring return

  • Mfr # XALD215H7

  • Zoro # G0861449

product price: $89.29
/ea
Free Shipping & Returns

Key Features

Material
polycarbonate
Cable Entry
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Standards
EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-1
[Ie] Rated Operational Current
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
Tightening Torque
0.8-1.2 N.m EN/IEC 60947-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XALD215H7
Zoro #
G0861449
UPC #
785901596899
Country of Origin
France

Details

Item
2 Push Buttons Cont Box
Material
polycarbonate
Cable Entry
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Standards
EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-1
[Ie] Rated Operational Current
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
Tightening Torque
0.8-1.2 N.m EN/IEC 60947-1
Operator Profile
2 flush push-buttons
Marking Location
marking on push-button
Ik Degree Of Protection
IK03 EN 50102
Positive Opening
with EN/IEC 60947-5-1 appendix K
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Control Station Application
Start-Stop function
Overvoltage Category
class II IEC 60536
Contacts Material
silver alloy (Ag/Ni)
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Protective Treatment
TH
Mechanical Durability
5000000 cycles
Product Certifications
CSA || UL Listed
Colour Of Cover
dark grey RAL 7016)
Control Station Composition
1 flush push-button, green 1 NO START || 1 flush push-button, red 1 NC STOP
Device Short Name
XALD
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Colour Of Marking
black marking when white caps || white marking when green, red or black caps
Operating Force
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Product Or Component Type
complete control station
Operators Description
green ''START'' 1 NO - red ''STOP'' 1 NC
Ambient Air Temperature For Operation
-40-70°C
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
5 gn 12-500 Hz)IEC 60068-2-6
Colour Of Base Of Enclosure
light grey RAL 7035)
Product Destination
for XB5 Ø 22 mm control and signalling units
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
Contact Operation
slow-break
Range of Product
Harmony XALD

Description

2 Push Buttons Cont Box
