Shop SCHNEIDER ELECTRIC

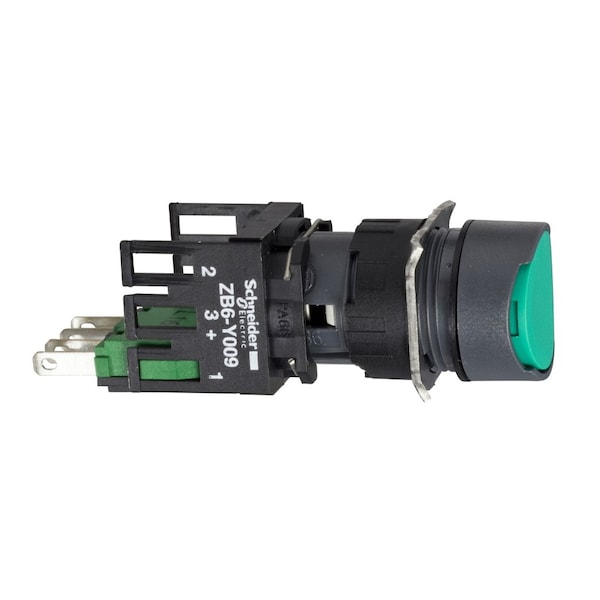

Complete push button, Harmony XB6, green flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked

  • Mfr # XB6AA35B
  • Zoro # G710769713
product price:
$
25.59
/ea

Key Features

Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
16 mm
Head Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB6AA35B
Zoro #
G710769713
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
16 mm
Width
18 mm
Height
18 mm
Mounting Diameter
16 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Non-Illuminated
Head Color
Green
Terminal Connection
Faston
Standards
UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C 852, EN/IEC 60947-5-5, JIS C 4520, EN/IEC 60947-1
Bezel Material
plastic
Type of Operator
spring return
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Short-Circuit Protection
6 A cartridge fuse gG
Mechanical Durability
2000000 cycles
Terminals Description Iso N°1
(13-14)NO, (21-22)NC
Contact Operation
slow-break
Ambient Air Temperature For Storage
-40-70°C
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Protective Treatment
TC
Operating Position
any position
Positive Opening
with EN/IEC 60947-5-1 appendix K
Contacts Type And Composition
1 NO + 1 NC
Contacts Material
silver alloy (Ag/Ni)
Operating Travel
1 mm NO changing electrical state), 2 mm NC changing electrical state), 3.5 mm total travel)
Device Short Name
XB6
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6
Product or Component Type
complete push-button
Electrical Reliability
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Shape of Signaling Unit Head
round
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Operating Force
3.5 N NO changing electrical state, 4.5 N NC changing electrical state
Range of Product
Harmony XB6
Ip Degree of Protection
IP65 IEC 60529
Ambient Air Temperature For Operation
-25-70°C
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Operator Profile
green flush, unmarked
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Nema Degree of Protection
NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
Electrical Shock Protection Class
class II IEC 61140

Description

GREEN PUSHBUT TO N DIAM 16 FLUSH SPRING
