  13. Complete selector switch, Harmony XB6, black round, 16mm, 2 positions, stay put, 1NO + 1NC, key 200

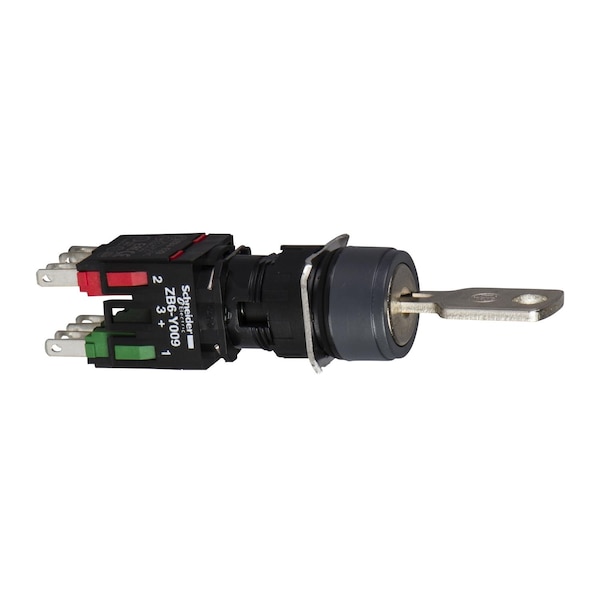

Schneider Electric Complete selector switch, Harmony XB6, black round, 16mm, 2 positions, stay put, 1NO + 1NC, key 200 XB6AGC5B - main

Complete selector switch, Harmony XB6, black round, 16mm, 2 positions, stay put, 1NO + 1NC, key 200

  • Mfr # XB6AGC5B

  • Zoro # G0853399

product price: $56.45
/ea

Key Features

Bezel Material
plastic
Standards
EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C 852 || EN/IEC 60947-5-1 || JIS C8201-1
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Mechanical Durability
200000 cycles
Operator Position Information
2 positions 70°
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6AGC5B
Zoro #
G0853399
UPC #
785901356431
Country of Origin
United States

Dimensions

Cad Overall Depth
80 mm
Mounting Diameter
16 mm
Cad Overall Height
18 mm
Cad Overall Width
18 mm

Details

Item
Selector Switch 250Vac 15A Xb6
Bezel Material
plastic
Standards
EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C 852 || EN/IEC 60947-5-1 || JIS C8201-1
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Mechanical Durability
200000 cycles
Operator Position Information
2 positions 70°
Shape Of Signaling Unit Head
round
Key Withdrawal Position
in any position
Ambient Air Temperature For Operation
-25-70°C
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Ambient Air Temperature For Storage
-40-70°C
Type Of Operator
stay put
Electrical Shock Protection Class
class II IEC 61140
Short-Circuit Protection
6 A cartridge fuse gG
Protective Treatment
TC
Contact Operation
slow-break
Operator Profile
key switch
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operating Position
any position
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Product Certifications
UL || CSA || GOST || CCC
Ip Degree Of Protection
IP65 IEC 60529
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Type Of Keylock
key 200
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Positive Opening
with EN/IEC 60947-5-1 appendix K
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Product Or Component Type
complete selector switch
Contacts Type And Composition
1 NO + 1 NC
Device Short Name
XB6
Electrical Reliability
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4
Contacts Material
silver alloy (Ag/Ni)
Range of Product
Harmony XB6

Description

Selector Switch 250Vac 15A Xb6
