  15. Contact Block, 1NO + 1NC Slow Break, 22mm

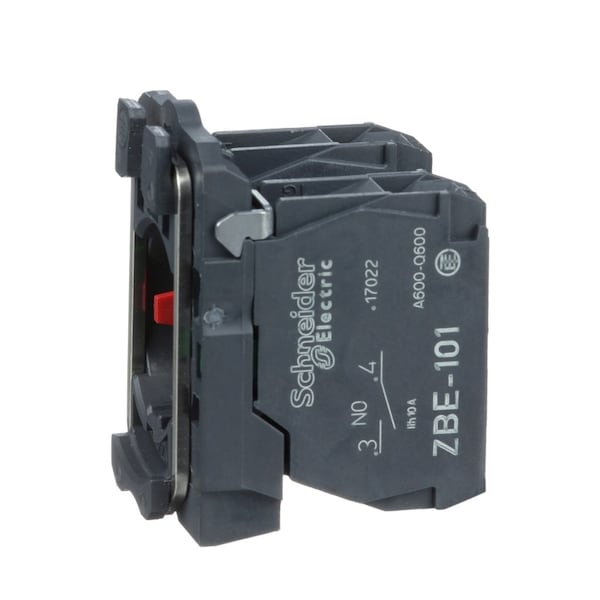

Schneider Electric Contact Block, 1NO + 1NC Slow Break, 22mm ZB5AZ105 - main

Contact Block, 1NO + 1NC Slow Break, 22mm

  • Mfr # ZB5AZ105

  • Zoro # G1042553

product price: $35.75
/ea

Key Features

Color
Black
Contact Form
1NO/1NC
Contact Rating
10A @ 600V AC
Action
Momentary/Break Before Make
NEMA Contact Rating Designation
A600/Q600
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AZ105
Zoro #
G1042553
UPC #
785901370253
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Width
30 mm
Cad Overall Depth
32 mm
Cad Overall Height
42 mm
Manufacturer Warranty Length
18 mo
Connection Size
22 mm

Details

Item
Contact Block
Color
Black
Contact Form
1NO/1NC
Contact Rating
10A @ 600V AC
Action
Momentary/Break Before Make
NEMA Contact Rating Designation
A600/Q600
For Use With
Schneider ZB5 Plastic Operator
Application
Operator
Standards
CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Terminal Connection
Screw/Clamp
Mechanical Durability
10000000 cycles
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Device Short Name
ZB5
Ip Degree Of Protection
IP20 IEC 60529
Product Certifications
LROS (Lloyds register of shipping) || UL || DNV || CSA || BV || GL
Device Presentation
basic sub-assemblies
Terminals Description Iso N°1
(13-14)NO || (11-12)NC
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Contact Operation
slow-break
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Device Composition
fixing collar || body
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Product Or Component Type
complete body/contact assembly
Positive Opening
with EN/IEC 60947-5-1 appendix K
Ambient Air Temperature For Storage
-40-70°C
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Fixing Collar Material
plastic
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contact Block Type
single
Tightening Torque
0.8-1.2 N.m EN 60947-1
Contacts Material
silver alloy (Ag/Ni)
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ambient Air Temperature For Operation
-40-70°C
Contacts Type And Composition
1 NO + 1 NC
Protective Treatment
TH
Head Type
standard
Contacts Usage
standard contacts
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Terminals Description Iso N°1
(13-14)NO || (11-12)NC
Compatible with Series
ZB5
AC Contact Rating
1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Includes Mounting Block
Mounting Block Included
Compatible Operator
Push Button
Switch Action
Momentary
Terminal Connection Type
Screw Clamp Terminals
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V

Description

Contact Block, Contact Form 1NO/1NC, Contact Rating 10A @ 600V AC, For Use With Schneider ZB5 Plastic Operator, Action Momentary/Break Before Make, 22 mm, Application Operator, NEMA Contact Rating Designation A600/Q600, Color Black, Terminal Connection Screw/Clamp, Standards CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
