  15. Contact Block, 1NO Slow Break, 22mm

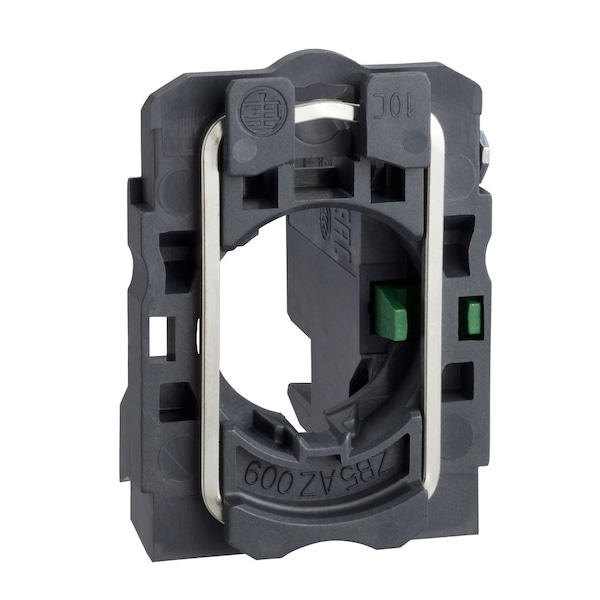

Schneider Electric Contact Block, 1NO Slow Break, 22mm ZB5AZ1014 - main

Contact Block, 1NO Slow Break, 22mm

  • Mfr # ZB5AZ1014

  • Zoro # G1646181

product price: $21.89
/ea

Key Features

Color
Black
Standards
CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Size
22 mm
Action
Momentary
NEMA Contact Rating Designation
A300/R300
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AZ1014
Zoro #
G1646181
UPC #
785901396338
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Height
42 mm
Cad Overall Width
30 mm
Cad Overall Depth
32 mm
Connection Size
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Contact Block
Color
Black
Standards
CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Action
Momentary
NEMA Contact Rating Designation
A300/R300
Terminal Connection
Plug-In Connector
Contact Rating
10A @ 250V AC
Application
Operator
Contact Form
1NO
For Use With
Schneider ZB4 Metal Operators
Mechanical Durability
10000000 cycles
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Product Or Component Type
complete body/contact assembly
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Contact Block Type
single
Device Short Name
ZB5
[Uimp] Rated Impulse Withstand Voltage
4 kV EN 60947-1
Protective Treatment
TH
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Ip Degree Of Protection
IP20 IEC 60529
Connections - Terminals
plug-in connector
Electrical Durability
1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Ambient Air Temperature For Storage
-40-70°C
Device Composition
body || fixing collar
Positive Opening
without
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ui] Rated Insulation Voltage
250 V 3)EN 60947-1
Ambient Air Temperature For Operation
-40-70°C
Terminals Description Iso N°1
(13-14)NO
Fixing Collar Material
plastic
Short-Circuit Protection
4 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Usage
standard contacts
Operating Travel
2.6 mm NO changing electrical state) || 4.3 mm total travel)
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Contacts Type And Composition
1 NO
Contacts Material
silver alloy (Ag/Ni)
Product Certifications
CSA || DNV || BV || GL || UL || LROS (Lloyds register of shipping)
Contact Operation
slow-break
Head Type
standard
Operating Force
2.3 N NO changing electrical state
Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Rated Insulation Voltage
250 V 3)IEC 60947-1
Rated Operational Current
3 A 240 V, AC-15, A300 IEC 60947-5-1; 6 A 120 V, AC-15, A300 IEC 60947-5-1; 0.1 A 250 V, DC-13, R300 IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Terminals Description Iso N°1
(13-14)NO
Terminal Connection Type
Plug-In Connector
Switch Action
Momentary
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Compatible with Series
ZB5
Compatible Operator
Push Button
AC Contact Rating
1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Includes Mounting Block
Mounting Block Included

Description

Contact Block, Contact Form 1NO, Contact Rating 10A @ 250V AC, For Use With Schneider ZB4 Metal Operators, Action Momentary, 22 mm, Application Operator, NEMA Contact Rating Designation A300/R300, Color Black, Terminal Connection Plug-In Connector, Standards CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
