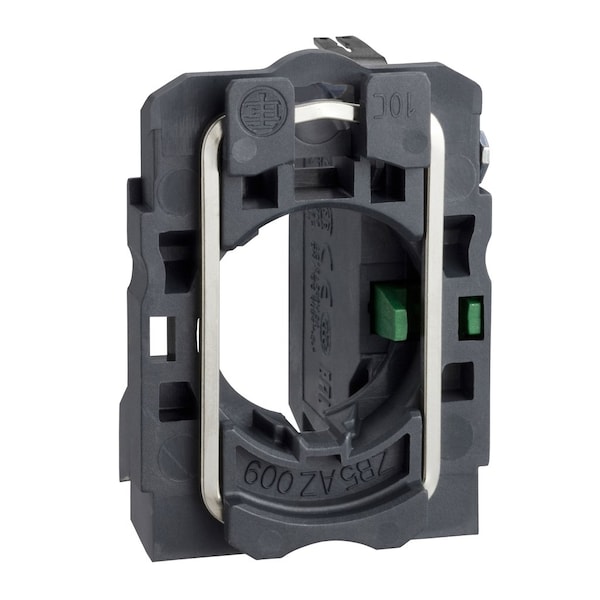

Contact Block, Black, 1NO, 22 mm, ZB5

  • Mfr # ZB5AZ1013

  • Zoro # G0200018

product price:
$
16.59
/ea

Key Features

Size
22 mm
Application
Building and Infrastructure, Industry
Contact Form
1NO
Color
Black
NEMA Contact Rating Designation
A600/Q600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB5AZ1013
Zoro #
G0200018
UPC #
785901277606
Country of Origin
Korea, Republic of

Dimensions

Size
22 mm
Connection Size
22 mm
Manufacturer Warranty Length
18 mo
Cad Overall Depth
32 mm
Cad Overall Height
42 mm
Cad Overall Width
30 mm

Details

Item
Contact Block
Application
Building and Infrastructure, Industry
Contact Form
1NO
Color
Black
NEMA Contact Rating Designation
A600/Q600
Safety Rating
CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Standards
CSA C22.2 No.14, E/IEC 60947-1, E/IEC 60947-5-1, E/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
For Use With
ZB5AZ902
Terminal Connection
Faston Connector
Switch Action
Momentary
Compatible with Series
ZB5
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Compatible Operator
Push Button
AC Contact Rating
1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Compatible with Manufacturer Model Number
ZB5AZ902
Includes Mounting Block
Mounting Block Included
Terminal Connection Type
Faston Connector
Device Short Name
ZB5
Contacts Material
silver alloy (Ag/Ni)
Ip Degree Of Protection
IP20 IEC 60529
Contact Operation
slow-break
Positive Opening
without
Operating Travel
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type
complete body/contact assembly
Head Type
standard
Contacts Usage
standard contacts
Product Certifications
LROS (Lloyds register of shipping) || CSA || UL || BV || GL || DNV
Device Composition
body || fixing collar
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Terminals Description Iso N°1
(13-14)NO
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Connections - Terminals
Faston connector 1 x 6.35 mm || Faston connector 2 x 2.8 mm
Contact Block Type
single
Ambient Air Temperature For Operation
-40-70°C
Ambient Air Temperature For Storage
-40-70°C
Mechanical Durability
10000000 cycles
Protective Treatment
TH
Contacts Type And Composition
1 NO
[Ui] Rated Insulation Voltage
250 V 3)EN 60947-1
Fixing Collar Material
plastic
Operating Force
2.3 N NO changing electrical state
Compatible Manufacturer Part Number
ZB5AZ902
Compatible Manufacturer Model Number
ZB5AZ902
Compatible with Manufacturer Model No.
ZB5AZ902
Compatible with Mfr. Model No.
ZB5AZ902
For Use with Mfr Model Number
ZB5AZ902
For Use With Mfr. Model Number
ZB5AZ902
Compatible Pump Manufacturer Part Number
ZB5AZ902
Compatible Mfr. Model Number
ZB5AZ902
For Manufacturer Part Number
ZB5AZ902
Compatible with Mfr. Model Number
ZB5AZ902

Description

Contact Block, Contact Form 1NO, For Use With ZB5AZ902, 22 mm, Application Building and Infrastructure, Industry, NEMA Contact Rating Designation A600/Q600, Color Black, Terminal Connection Faston Connector, Standards CSA C22.2 No.14, E/IEC 60947-1, E/IEC 60947-5-1, E/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, Safety Rating CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
