Shop SCHNEIDER ELECTRIC

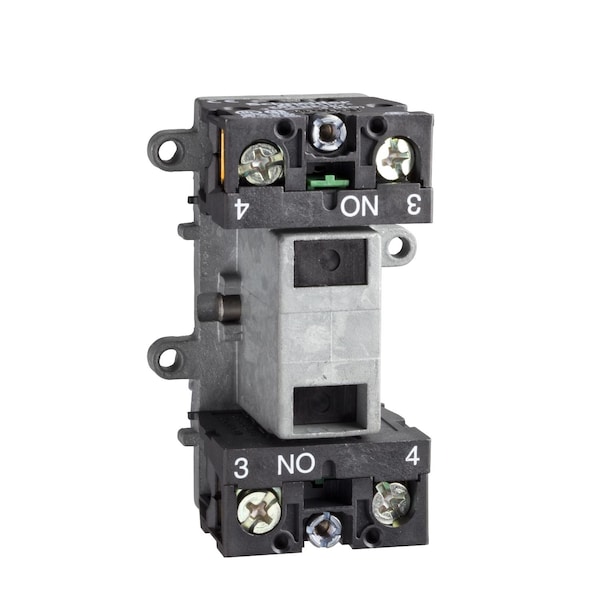

Contact block, Harmony XAC, double contact, latching, single speed, front mounting, 2NO

  • Mfr # XENG3781

  • Zoro # G3155008

product price:
$
35.99
/ea

Key Features

Type of Operator
latching
Standards
UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1
Contacts Type And Composition
2 NO
Shock Resistance
100 gn IEC 60068-2-27
Mounting of Block
front mounting
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XENG3781
Zoro #
G3155008
UPC #
785901645863
Country of Origin
France

Details

Item
Pendant Station Contact 240Vac 3A Xe
Type of Operator
latching
Standards
UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1
Contacts Type And Composition
2 NO
Shock Resistance
100 gn IEC 60068-2-27
Mounting of Block
front mounting
Rated Operational Power In W
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Mechanical Durability
1000000 cycles
Contact Operation
slow-break
Range of Product
Harmony XAC
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Contact Block Application
single speed
Short-Circuit Protection
10 A fuse protection cartridge gG
Ambient Air Temperature For Operation
-25-70°C
Contact Code Designation
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Operating Force
15 N
Component Name
XENG
Electrical Circuit Type
control circuit
[Ithe] Conventional Enclosed Thermal Current
10A
Overvoltage Category
class II IEC 61140
Contact Block Type
double
Ambient Air Temperature For Storage
-40-70°C
[Ui] Rated Insulation Voltage
600 V 3)IEC 60947-1
Terminals Description Iso N°1
(13-14)NO, B
Product or Component Type
contact block
Terminals Description Iso N°2
(13-14)NO, B
Maximum Resistance Across Terminals
25 MOhm
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Product Compatibility
XACA
Connections - Terminals
screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end, screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Type Of Operator
latching
Product Or Component Type
contact block
Mounting Of Block
front mounting

Description

Pendant Station Contact 240Vac 3A Xe
