  8. Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC

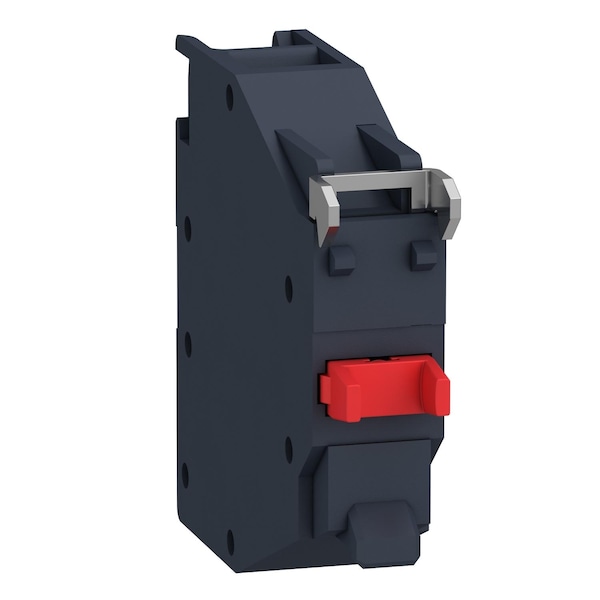

Schneider Electric Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC ZBE102GEX - main

Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC

  • Mfr # ZBE102GEX

  • Zoro # G3548877

product price:  $49.45
/ea

Key Features

Application
Oil &Gas, Chemicals, Food & Beverage, Printing, Paint Manufacturing Lines
Contact Form
1 NC
Standards
UL 60079-31, UL 60079-0, UL 60079-1, ANSI/ISA 12.12.01, EN/IEC 60079-0, EN/IEC 60079-31, CSA C22.2 No 213, EN/IEC 60079-1, EN/IEC 60079-7
NEMA Contact Rating Designation
A600/Q300
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZBE102GEX
Zoro #
G3548877
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Depth
42.4 mm
Cad Overall Width
38 mm
Cad Overall Height
10 mm

Details

Item
Contact Block
Application
Oil &Gas, Chemicals, Food & Beverage, Printing, Paint Manufacturing Lines
Contact Form
1 NC
Standards
UL 60079-31, UL 60079-0, UL 60079-1, ANSI/ISA 12.12.01, EN/IEC 60079-0, EN/IEC 60079-31, CSA C22.2 No 213, EN/IEC 60079-1, EN/IEC 60079-7
NEMA Contact Rating Designation
A600/Q300
Terminal Connection
Screw Clamp
Safety Rating
UL 60079-31, UL 60079-0, UL 60079-1, ANSI/ISA 12.12.01, EN/IEC 60079-0, EN/IEC 60079-31, CSA C22.2 No 213, EN/IEC 60079-1, EN/IEC 60079-7
[Ui] Rated Insulation Voltage
415 V
Contact Operation
standard
Operating Force
2.873 N
Tightening Torque
0.8-1.2 N.m EN 60947-1
Environmental Characteristic
hazardous location class I division 2
Mounting Of Block
front mounting
Mechanical Durability
1000000 cycles
Contact Block Type
single
Contacts Type And Composition
1 NC
[Ie] Rated Operational Current
1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Ambient Air Temperature For Operation
-50-75°C
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Ambient Air Temperature For Storage
-50-70°C
Product Or Component Type
contact block
Product Certifications
cULus
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² without cable end || screw clamp terminals, 1 x 2.5 mm² with cable end
Contacts Usage
gas protected contact
Device Short Name
ZBE
Protective Treatment
TH
Operating Travel
1.688 mm engagement point) || 3.271 mm changing state point) || 4.424 mm total travel)
Positive Opening
with
Marking
Ex db eb IIC Gb
Range of Product
Harmony XB4

Description

Contact Block, Contact Form 1 NC, Application Oil &Gas, Chemicals, Food & Beverage, Printing, Paint Manufacturing Lines, NEMA Contact Rating Designation A600/Q300, Terminal Connection Screw Clamp, Standards UL 60079-31, UL 60079-0, UL 60079-1, ANSI/ISA 12.12.01, EN/IEC 60079-0, EN/IEC 60079-31, CSA C22.2 No 213, EN/IEC 60079-1, EN/IEC 60079-7, Safety Rating UL 60079-31, UL 60079-0, UL 60079-1, ANSI/ISA 12.12.01, EN/IEC 60079-0, EN/IEC 60079-31, CSA C22.2 No 213, EN/IEC 60079-1, EN/IEC 60079-7
