Shop SCHNEIDER ELECTRIC

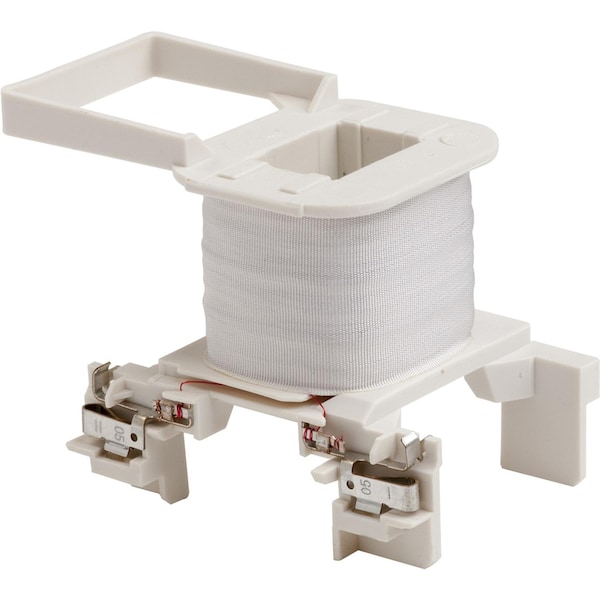

Contactor coil, TeSys Deca, LXD3, 220V AC 50/60Hz for 40.65A contactor

  • Mfr # LXD3M7

  • Zoro # G0860417

product price:  $53.99
/ea

Key Features

Hz - Electrical
50/60 Hz
Power Consumption - Relay
15-15 VA 0.3 20 A Deg C || 15-15 VA 0.3 20 A Deg C
Input or Control Voltage
220 V AC
Coil Technology
without built-in suppressor module
[Uc] Control Circuit Voltage
220 V AC 50/60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LXD3M7
Zoro #
G0860417
UPC #
785901811374
Country of Origin
France

Details

Item
D40A To D65A Replace Coil 220 Vac 50/60
Hz - Electrical
50/60 Hz
Power Consumption - Relay
15-15 VA 0.3 20 A Deg C || 15-15 VA 0.3 20 A Deg C
Input or Control Voltage
220 V AC
Coil Technology
without built-in suppressor module
[Uc] Control Circuit Voltage
220 V AC 50/60 Hz
Inductance of Closed Circuit
10 H
Ambient Air Temperature For Operation
-5-60°C
Control Circuit Voltage Limits
drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60°C), operational: 0.8...1.1 Uc at 50 Hz (at <60°C), operational: 0.85...1.1 Uc at 60 Hz (at <60°C)
Product Compatibility
LC1D40A...D65A, LC1DT80A, LC1DT60A
Range
TeSys
Mechanical Durability
6 Mcycles
Maximum Operating Rate
3600 cyc/h 60°C
Inrush Power In Va
160-160 VA 60 Hz cos phi 0.75 (at 20°C), 160-160 VA 50 Hz cos phi 0.75 (at 20°C)
Heat Dissipation
4-5 W 50/60 Hz
Average Resistance
182 Ohm 20°C
Control Circuit Type
AC 50/60 Hz
Hold-In Power Consumption In Va
15-15 VA 60 Hz cos phi 0.3 (at 20°C), 15-15 VA 50 Hz cos phi 0.3 (at 20°C)
Device Short Name
LXD3
Inrush Power in VA
160 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 160 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
Inductance Of Closed Circuit
10 H
Control Circuit Voltage
220 V AC 50/60 Hz
Hold-In Power Consumption in VA
15 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 15 VA 50 Hz cos phi 0.3 (at 68°F (20°C))

Description

D40A To D65A Replace Coil 220 Vac 50/60
