Shop SCHNEIDER ELECTRIC

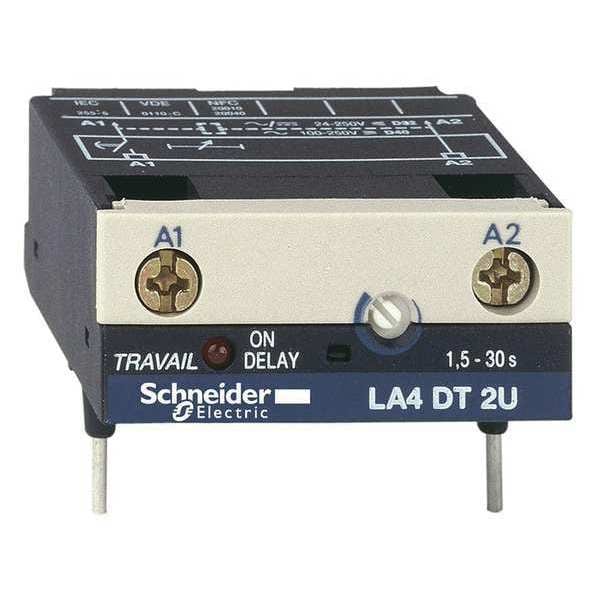

Contactor+Relay Timer Module 250V Iec

  • Mfr # LA4DT2U

  • Zoro # G0569628

product price:
$
107.99
/ea
Free Shipping & Returns

Key Features

Standards
IEC 60255-5
Timer Type
on delay
Ambient Air Temperature For Storage
-40-80°C
Local Signalling
illuminates during time delay by LED
Connections - Terminals
control circuit connector 1 1-2.5 mm²flexible with cable end || control circuit connector 1 1-2.5 mm²solid with cable end || control circuit connector 1 1-2.5 mm²flexible without cable end || control circuit connector 1 1-2.5 mm²solid without cable end || control circuit connector 2 1-2.5 mm²flexible with cable end || control circuit connector 2 1-2.5 mm²solid with cable end || control circuit connector 2 1-2.5 mm²flexible without cable end || control circuit connector 2 1-2.5 mm²solid without cable end
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LA4DT2U
Zoro #
G0569628
UPC #
785901260998
Country of Origin
Tunisia

Details

Item
Contactor+Relay Timer Module 250V Iec
Standards
IEC 60255-5
Timer Type
on delay
Ambient Air Temperature For Storage
-40-80°C
Local Signalling
illuminates during time delay by LED
Connections - Terminals
control circuit connector 1 1-2.5 mm²flexible with cable end || control circuit connector 1 1-2.5 mm²solid with cable end || control circuit connector 1 1-2.5 mm²flexible without cable end || control circuit connector 1 1-2.5 mm²solid without cable end || control circuit connector 2 1-2.5 mm²flexible with cable end || control circuit connector 2 1-2.5 mm²solid with cable end || control circuit connector 2 1-2.5 mm²flexible without cable end || control circuit connector 2 1-2.5 mm²solid without cable end
Control Circuit Voltage Limits
by mechanical contact 0.8 to 1.1 Uc
Product Compatibility
LC1D09 to D38 || LC1D80 to D150 || LC1D40A to D80A
Mounting Location
top
Range
TeSys
Reset Time
150 ms during time delay || 50 ms after time delay
Heat Dissipation
2-2 W
Time Delay Range
1.5 to 30 s
Immunity To Microbreaks
10 ms during time delay || 2 ms after time delay
Ip Degree Of Protection
IP2X conforming to IEC 60529
Ambient Air Temperature For Operation
-25-55°C
Permissible Ambient Air Temperature Around The Device
-25-70°C
Product Certifications
CSA || UL
[Uc] Control Circuit Voltage
24 to 250 V AC 50/60 Hz || 24 to 250 V DC
Tightening Torque
1.7 N.m
Poles Description
3P
Protection Type
built-in by varistor
Device Short Name
LA4DT
[Ui] Rated Insulation Voltage
250 V IEC 60947-1
Product Or Component Type
serial timer modules
Electrical Durability
30 Mcycles
[Ures] Residual Voltage
3.3 V

Description

Contactor+Relay Timer Module 250V Iec
