Auxiliary Contact Form
2NC/2NO
Maximum Voltage Rating
690V AC
Standards
EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
[Uc] Control Circuit Voltage
24 V DC
Associated Fuse Rating
10 A gG IEC 60947 || 10 A gG VDE 0660
Flame Retardance
V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
Insulation Resistance
> 10 MOhm
Immunity To Microbreaks
2 ms
Coil Technology
built-in bidirectional peak limiting diode suppressor
Protective Treatment
TC IEC 60068
Mechanical Durability
20 Mcycles
[Ui] Rated Insulation Voltage
690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
Ambient Air Temperature For Storage
-50-80°C
Mounting Support
plate || rail
Ambient Air Temperature For Operation
-25-50°C
Minimum Switching Current
5 mA
Operating Altitude
6561.68 ft (2000 m) without derating
Pole Contact Composition
2 NO + 2 NC
Product Certifications
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Inrush Power In W
3-3 W 20°C)

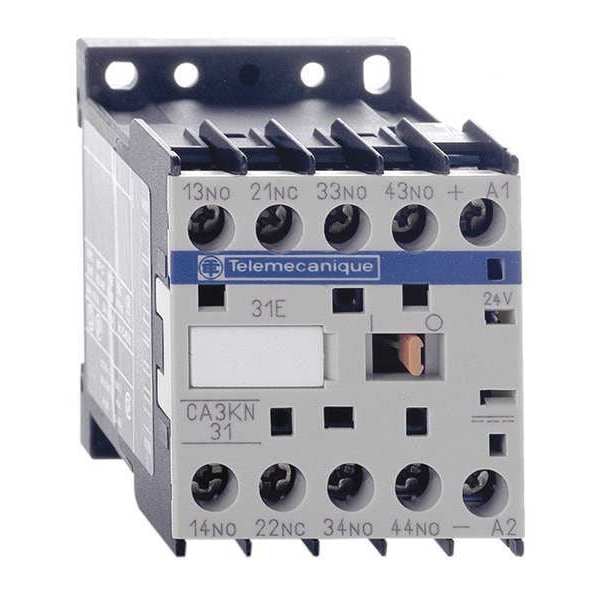

Product Or Component Type
control relay
[Ith] Conventional Free Air Thermal Current
10 A 50°C
Hold-In Power Consumption In W
3-3 W 20°C
Irms Rated Making Capacity
110 A IEC 60947
Operating Time
10 ms coil de-energisation and NO opening || 30 to 40 ms coil energisation and NO closing || 15 ms coil de-energisation and NC closing || 25 to 35 ms coil energisation and NC opening
Non Overlap Distance
0.5 mm
Ip Degree Of Protection
IP2X
Tightening Torque
1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
Minimum Switching Voltage
17 V
Control Circuit Voltage Limits
operational 0.8 to 1.15 Uc 50°C) || drop-out 0.1 to 0.75 Uc 50°C)
Utilisation Category
DC-13 || AC-15
[Ue] Rated Operational Voltage
<= 690 V <= 400 Hz
Maximum Operating Rate
10000 cyc/h
Contactor Application
control circuit
Connections - Terminals
screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end
Mechanical Robustness
vibrations contactor open2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Control Circuit Type
DC standard
