Item

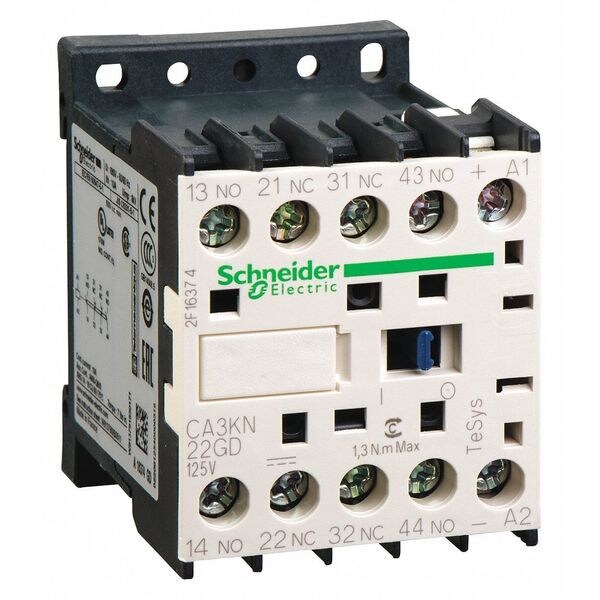

Control Relay 600Vac 10Amp Iec +Options
Standards
EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Non Overlap Distance
0.5 mm
Ambient Air Temperature For Operation
-25-50°C
Inrush Power In W
3-3 W 20°C)
Contactor Application
control circuit
Connections - Terminals
screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end
See More Mechanical Durability
20 Mcycles
Operating Altitude
6561.68 ft (2000 m) without derating
Product Or Component Type
control relay
[Ue] Rated Operational Voltage
<= 690 V <= 400 Hz
Mechanical Robustness
vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Mounting Support
plate || rail
Immunity To Microbreaks
2 ms
[Ui] Rated Insulation Voltage
690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
Ambient Air Temperature For Storage
-50-80°C
Minimum Switching Current
5 mA
Product Certifications
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Flame Retardance
V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
Utilisation Category
AC-15 || DC-13
Protective Treatment
TC IEC 60068
[Ith] Conventional Free Air Thermal Current
10 A 50°C
[Uc] Control Circuit Voltage
125 V DC
Control Circuit Voltage Limits
operational 0.8...1.15 Uc 50°C) || drop-out 0.1...0.75 Uc 50°C)
Hold-In Power Consumption In W
3-3 W 20°C
Ip Degree Of Protection
IP2X
Maximum Operating Rate
10000 cyc/h
Associated Fuse Rating
10 A gG IEC 60947 || 10 A gG VDE 0660
Minimum Switching Voltage
17 V
Pole Contact Composition
2 NO + 2 NC
Irms Rated Making Capacity
110 A IEC 60947
Operating Time
10 ms coil de-energisation and NO opening || 30...40 ms coil energisation and NO closing || 15 ms coil de-energisation and NC closing || 25...35 ms coil energisation and NC opening
Tightening Torque
1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
Control Circuit Type
DC standard
Insulation Resistance
> 10 MOhm
