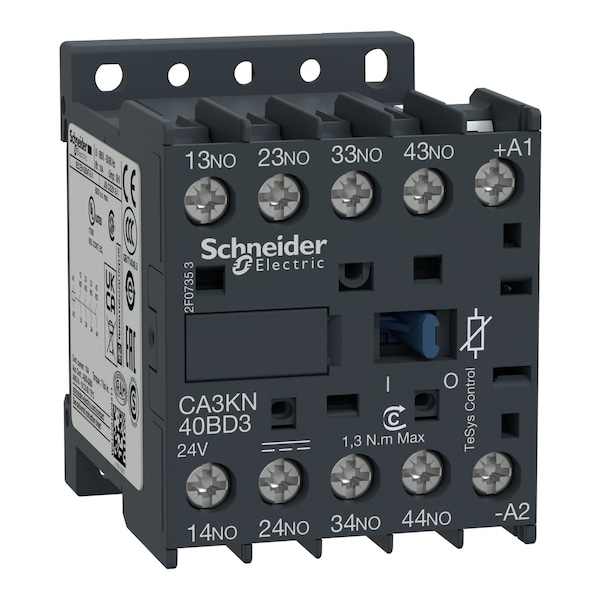

Control Relay 600Vac 10Amp Iec +Options

Control Relay 600Vac 10Amp Iec +Options

Mfr # CA3KN40BD3
Zoro # G0570081

$91.59

Free Shipping & Returns

Key Features

Maximum Voltage Rating

690V AC

Standards

EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1

Width

45 mm

Depth

57 mm

Height

58 mm

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

CA3KN40BD3

Zoro #

G0570081

UPC #

785901011231

Country of Origin

France

Dimensions

Width

45 mm

Depth

57 mm

Height

58 mm

Details

Item

Control Relay

Maximum Voltage Rating

690V AC

Standards

EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1

Hold-In Power Consumption In W

3-3 W 20°C

Inrush Power In W

3-3 W 20°C)

Mechanical Durability

20 Mcycles

Product Certifications

CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Range

TeSys

Heat Dissipation

3-3 W

Control Circuit Voltage Limits

operational 0.8 to 1.15 Uc 50°C) || drop-out 0.1 to 0.75 Uc 50°C)

Immunity To Microbreaks

2 ms

Connections - Terminals

screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end

Tightening Torque

1.3 N.m screw clamp terminals flat Ã˜ 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2

Protective Treatment

TC IEC 60068

Minimum Switching Current

5 mA

Non Overlap Distance

0.5 mm

Product Name

TeSys CAK

Associated Fuse Rating

10 A gG IEC 60947 || 10 A gG VDE 0660

Irms Rated Making Capacity

110 A IEC 60947

Operating Time

10 ms coil de-energisation and NO opening || 30 to 40 ms coil energisation and NO closing

Contactor Application

control circuit

Pole Contact Composition

4 NO

Product Or Component Type

control relay

Minimum Switching Voltage

17 V

Maximum Operating Rate

10000 cyc/h

Insulation Resistance

> 10 MOhm

Operating Altitude

6561.68 ft (2000 m) without derating

Ambient Air Temperature For Storage

-50-80°C

Ambient Air Temperature For Operation

-25-50°C

Flame Retardance

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Coil Technology

built-in bidirectional peak limiting diode suppressor

Control Circuit Type

DC standard

Mechanical Robustness

vibrations contactor open2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27

Device Short Name

CA3K

[Uc] Control Circuit Voltage

24 V DC

Utilisation Category

AC-15 || DC-13

IP Rating

IP2X

Rated Insulation Voltage

690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14

Mounting Style

plate || rail

Rated Operational Voltage

<= 690 V <= 400 Hz

Conventional Free Air Thermal Current

10 A 50°C

Description

Control Relay 600Vac 10Amp Iec +Options
