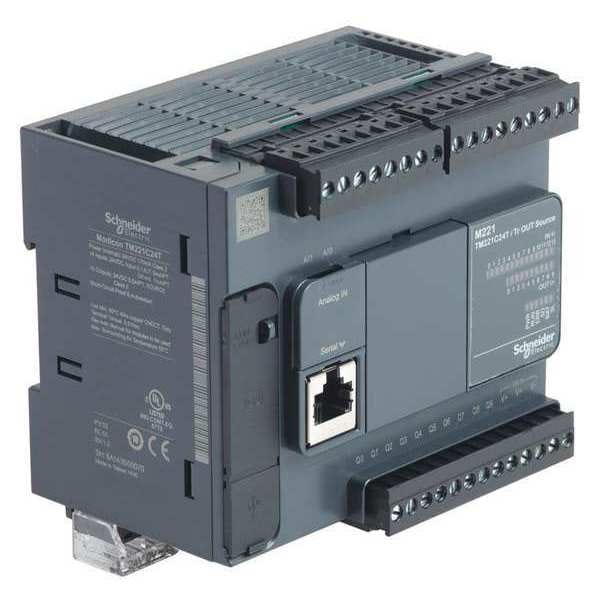

Controller, 24VDC, 6.10 in. W, Compact

Controller, 24VDC, 6.10 in. W, Compact

Mfr # TM221C24T
Zoro # G9372142

$460.99

Free Shipping & Returns

Key Features

Output Type

(10) Transistor

Number of Outputs

Number of Inputs

Features

Ethernet Port, Run/Stop Switch and Cartridge Extension, Serial Line Ports

Display

7 Segment LED

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

TM221C24T

Zoro #

G9372142

UPC #

785901637776

Country of Origin

Taiwan, Province of China

Dimensions

Depth

5.47 in

Height

4.17 in

Width

6.1 in

Maximum Size Of Object Areas

512 %KW constant words || 255 %C counters || 8000 %MW memory words || 255 %TM timers || 512 %M memory bits

Overall Height

3.54 in

Overall Width

4.33 in

Overall Depth

2.76 in

Details

Item

PLC

Output Type

(10) Transistor

Number of Outputs

Number of Inputs

Features

Ethernet Port, Run/Stop Switch and Cartridge Extension, Serial Line Ports

Display

7 Segment LED

Input Voltage

24V AC/DC

Amps

2 A

Clock

Standards

EN/IEC 61131-2 || EN/IEC 60664-1 || EN/IEC 61010-2-201

Response Time

35 Âµs turn-off, I2 to I5 input || 5 Âµs turn-on, I0, I1, I6, I7 fast input || 35 Âµs turn-on, other terminals input || 5 Âµs turn-off, I0, I1, I6, I7 fast input || 100 Âµs turn-off, other terminals input || 5 Âµs turn-on, turn-off, Q0 to Q1 output || 50 Âµs turn-on, turn-off, Q2 to Q3 output || 300 Âµs turn-on, turn-off, other terminals output

Product Type

Programmable Logic Controller

Immunity To Microbreaks

10 ms

Battery Type

BR2032 lithium non-rechargeable 4 year(s)

Electrical Connection

removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal

Product Certifications

DNV-GL || LR || cULus || RCM || EAC || IACS E10 || CSA || ABS

Discrete Output Logic

positive logic (source)

Resistance To Fast Transients

2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)

Maximum Current Per Output Common

Discrete Output Type

transistor

Discrete Output Current

0.5 A

Execution Time For 1 Kinstruction

0.3 ms event and periodic task

Discrete Output Number

10 transistor 2 fast output

Execution Time Per Instruction

0.2 Âµs Boolean

Output Frequency

100 kHz fast output (PWM/PLS mode) Q0 to Q1 || 5 kHz output Q2 to Q3 || 0.1 kHz output Q4 to Q9

Electromagnetic Emission

conducted emissions 79 dBÃŽÂ¼V/m QP/66 dBÃŽÂ¼V/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 || conducted emissions 73 dBÃŽÂ¼V/m QP/60 dBÃŽÂ¼V/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 || conducted emissions 120 to 69 dBÂµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBÃŽÂ¼V/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBÃŽÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || conducted emissions 79 to 63 dBÃŽÂ¼V/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBÃŽÂ¼V/m QP class A 10 m)200-1000 MHz EN/IEC 55011

Maximum Number Of I/O Expansion Module

7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Pollution Degree

<= 2

Configurable Filtering Time

0 ms input || 3 ms input || 12 ms input

Counting Input Number

4 fast input (HSC mode) 100 kHz 32 bits

Surge Withstand

2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) common mode EN/IEC 61000-4-5

Clock Drift

<= 30 s/month 25-25 Â°C

Conversion Time

1 ms per channel + 1 controller cycle time analog input

Relative Humidity

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Lsb Value

10 mV

Ambient Air Temperature For Storage

-25-70 Â°C

Analogue Input Number

2 0 to 10 V

Resistance To Conducted Disturbances

10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V 0.1 to 80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Maximum Power Consumption In W

13 W 24 V with max number of I/O expansion module) || 4.1 W 24 V without I/O expansion module)

[Us] Rated Supply Voltage

24 V DC

Discrete I/O Number

Ambient Air Temperature For Operation

-10-55 Â°C horizontal installation) || -10-35 Â°C vertical installation)

Discrete Output Voltage

24 V DC

Environmental Characteristic

ordinary and hazardous location

Data Backed Up

256 kB built-in flash memory backup of application and data

Supply

serial)serial link supply 5 V, <200 mA

Memory capacity

256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM

Mounting Support

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Marking

Ip Degree Of Protection

IP20 with protective cover in place

Product Or Component Type

logic controller

Reset Time

1 s automatic reset

Storage Altitude

0-3000 m

Permitted Overload On Inputs

+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input

Mechanical Durability

20000000 cycles transistor output

Maximum Cable Distance Between Devices

shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output

Integrated Connection Type

USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485

Input Impedance

3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input

Supply Voltage Limits

20.4-28.8 V

Regulation Loop

adjustable PID regulator up to 14 simultaneous loops

Backup Time

1 year 25 Â°C by interruption of power supply)

Absolute Accuracy Error

+/- 1 % of full scale analog input

Analogue Input Resolution

10 bits

Discrete Input Voltage

24 V

Protection Type

overload and short-circuit protection 1 A

Control Signal Type

A/B || single phase || pulse/direction

Voltage State 1 Guaranteed

>= 15 V input

Resistance To Magnetic Fields

30 A/m 50/60 Hz EN/IEC 61000-4-8

Voltage State 0 Guaranteed

<= 5 V input

Shock Resistance

147 m/sÂ² 11 ms

Resistance To Electrostatic Discharge

8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Transmission Rate

1.2 to 115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB

Realtime Clock

with

Discrete Input Logic

sink or source (positive/negative)

Insulation

between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs

Inrush Current

35 A

Communication Port Protocol

USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network

Discrete Input Voltage Type

Discrete Input Current

7 mA discrete input || 5 mA fast input

Exct Time For Event Task

60 Âµs response time

Resistance To Electromagnetic Fields

10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 to 2.7 GHz EN/IEC 61000-4-3

Maximum Tungsten Load

<12 W output and fast output

Discrete Input Number

14 , discrete input 4 fast input IEC 61131-2 Type 1

Operating Altitude

0 to 6561.68 ft (0 to 2000 m)

Data Storage Equipment

2 GB SD card optional)

Maximum Leakage Current

0.1 mA transistor output

Power Supply Output Current

0.52-0.52 A 5 V expansion bus || 0.2-0.2 A 24 V expansion bus

Vibration Resistance

3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

Maximum Voltage Drop

<1 V

Local Signalling

for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)

Positioning Functions

PTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)

Function Available

PWM || PLS || frequency generator

Output Circuit Current - Maximum

2 A

Input Circuit Voltage - Maximum

24 V

Current

2 A

DC Voltage Rating

24V DC

Communication Protocol Method

USB

Input Circuit Current - Maximum

7 mA

Input Type

14 (Discrete)

Clock Included

Display Type

LED

Communication Protocol

Modbus ASCII, Modbus RTU, SoMachine-Network

Memory Capacity

2 GB

Mounting Style

DIN Rail

Series

Output Circuit Voltage - Maximum

24 V DC

AC Voltage Rating

24V AC

Description

PLC, Input Voltage 24V AC/DC, Output Type (10) Transistor, 2 A Amps, Number of Inputs 14, Number of Outputs 10, No Clock, 7 Segment LED Display, Depth 5.47 in, Height 4.17 in, Width 6.1 in
