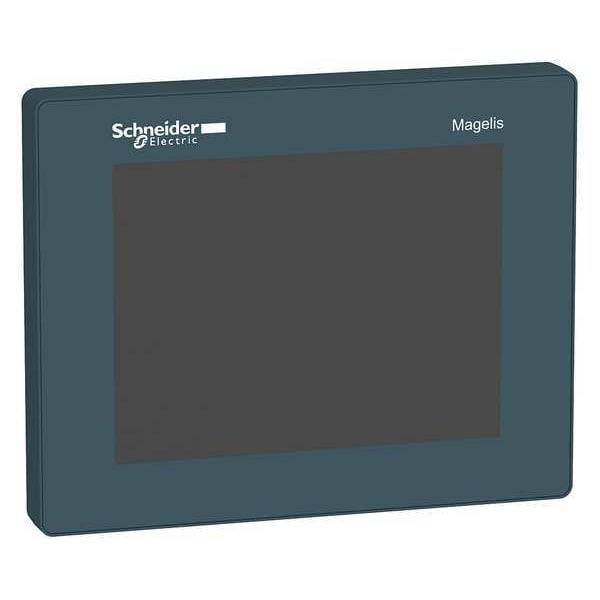

Controller Panel, 5.7 in. TFT Color, 24VDC

  • Mfr # HMISCU8B5
  • Zoro # G6081056
product price:
$
1,857.99
/ea
Free Shipping & Returns

Key Features

Display Type
TFT Color LCD
Port Type
USB 2.0, USB-Mini B
Memory
128 KB Internal Data Storage, FRAM
Display
320 x 240 Pixels
Height
5.9 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HMISCU8B5
Zoro #
G6081056
UPC #
785901176572
Country of Origin
China
Item
HMI Controller Panel
Display Type
TFT Color LCD
Port Type
USB 2.0, USB-Mini B
Memory
128 KB Internal Data Storage, FRAM
Display
320 x 240 Pixels
Special Features
Crystal Clear Display, Digital I/Os with HSC/PTO-PWM Functions and Analog I/Os with Temperature Inputs, Numerous Communication Ports
Voltage
24V DC
For Use With
Fipway, Magelis GTU, Melsec, Simatic, Sysmac
Viewing Angle (Deg.)
40 Degrees top, 60 Degrees Bottom, 60 Degrees Left, 60 Degrees Right
Product Type
HMI Controller Panel
Number Of Pages
limited by internal memory capacity
Input/Output Number
2 fast input FI0...FI1 || 2 fast output FQ0...FQ1 || 6 digital input DI0...DI5 || 6 digital output DQ0...DQ5
Power Consumption In W
24 W
Software Designation
SoMachine
Fixing Mode
by 1 nut Ø 22 mm 1...6 mm thick panel
Memory Description
flash NAND, 128 MB || internal data storage FRAM, 128 kB || application run DRAM, 128 MB
Product Or Component Type
small touch HMI controller
Marking
CE
Number Of Common Point
1 fast input (HSC mode) || 1 digital input
Maximum Pressure
800...1114 hPa
Ip Degree Of Protection
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
Local Signalling
no indicator
Touch Panel
analogue
Sensor Power Supply
15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA || 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
Character Font
Chinese (simplified Chinese) || Japanese (ANK, Kanji) || ASCII || Korean || Taiwanese (traditional Chinese)
Ambient Air Temperature For Storage
-20-60°C
Discrete Input Number
2 fast input (normal mode) IEC 61131-2 Type 1 || 6 digital input IEC 61131-2 Type 1
Discrete Input Voltage
24 V DC sink or source (positive/negative)
Maximum Output Frequency
100 kHz fast output (PTO mode) || 1 kHz fast output (PWM mode)
Nema Degree Of Protection
NEMA 4X front panel
Isolation Between Channels And Internal Logic
500 V DC
Discrete Output Number
2 fast output (normal mode) source || 6 digital output source
Downloadable Protocols
Modbus || Modbus TCP/IP || CANopen
Inrush Current
30 A
Insulation Resistance
> 10 MOhm between the I/O and internal logic || > 10 MOhm between power supply and earth
Pollution Degree
2 IEC 60664
Analogue Output Range
0...20 mA/4...20 mA > 300 Ohm)open-circuit || -10...10 V/0...10 V > 2 kOhm)short-circuit
Vibration Resistance
+/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
Shock Resistance
147 m/s² 11 ms on DIN rail)IEC 60068-2-27 || 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
Ambient Air Temperature For Operation
0-50°C
Maximum Input Frequency
100 kHz fast input (encoder mode) A/B || 100 kHz fast input single phase || 100 kHz fast input pulse/direction
Backlight Lifespan
50000 hours 65000 colours
View Angle Horiz X Vert
60° left || 60° right || 40° top || 60° bottom
Brightness
16 levels via touch panel
Analogue Input Number
2 analog input || 2 RTDs
Supply
external source
Environmental Characteristic
corrosive gas free
Product Certifications
cULus 508 || cULus CSA 22-2 No 142 || GOST || cUL 1604 Class 1 Division 2 || C-tick || KCC || UKCA || UKEX
Standards
FCC Class A || EN 61131-2 || UL 508 || IEC 61000-6-2 || CSA C22.2 No 213 Class I Division 2 || ANSI/ISA 12-12-01
Relative Humidity
5-85 % without condensation
Realtime Clock
built-in
Discrete Output Voltage
24 V DC 19.2...28.8 V)transistor || 24 V DC 5...30 V)relay || 220 V AC 100...250 V)relay
[Us] Rated Supply Voltage
24 V 20.4-28.8 V)DC
Immunity To Microbreaks
10 ms
Integrated Connection Type
1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s) || 1 Ethernet TCP/IP - RJ45 || 1 USB 2.0 type mini B || 1 USB 2.0 type A || CANopen master bus - SUB-D 9
Input Impedance
4.7 kOhm || 2.81 kOhm
Discrete Output Current
2 A 4 A)5 ms opening contact digital output || 2 A 4 A)2 ms closing contact digital output || 300 mA2 ms fast output (normal mode) || 50 mA2 ms fast output (PWM or PTO mode)
Storage Altitude
0-10000 m
Configurable Filtering Time
0 ms no filter none) || 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) || 3...12 ms integrator none/run/stop)
Maximum Cable Distance Between Devices
shielded cable <10 m fast input || shielded cable <100 m digital input || unshielded cable <50 m digital input
Analogue Input Range
0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %) || -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm
Connection Pitch
3.5 mm
Upgradeability
Upgradeable through digital modules and upgraded components
Operating System
Harmony
Absolute Accuracy Error
+/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || 1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || +/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode) || +/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode) || +/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode)
Device Presentation
complete product
Analogue Input Type
RTD - 200...600°C 16 bitsPt 100/Pt 1000 || RTD - 50...200°C 16 bitsNi 100/Ni 1000 || RTD - 200...760°C 16 bits thermocouple J) || RTD - 240...1370°C 16 bits thermocouple K) || RTD 0...1600°C 16 bits thermocouple R) || RTD 200...1800°C 16 bits thermocouple B) || RTD 0...1600°C 16 bits thermocouple S) || RTD - 200...400°C 16 bits thermocouple T) || RTD - 200...900°C 16 bits thermocouple E) || RTD - 200...1300°C 16 bits thermocouple N)
Processor Name
CPU RISC
Analogue Output Number
2 resistive load 12 bits + sign
Overvoltage Protection
with
Processor Frequency
333 MHz
Operating Altitude
<= 6561.68 ft (2000 m)
Discrete Input Current
7.83 mA fast input || 5 mA digital
Display Resolution
320 x 240 pixels QVGA
Enclosure Material
PC/PBT and PAA
Electromagnetic Compatibility
electrostatic discharge immunity test 8 kV air discharge) IEC 61000-4-2 || electrostatic discharge immunity test 6 kV contact discharge) IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz...3 GHz) IEC 61000-4-3 || electrical fast transient/burst immunity test 2 kV power lines) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV between analogue I/O and operating voltage) IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV relay wires) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV Ethernet line) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV COM line) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV CAN line) IEC 61000-4-4 || surge immunity test 2 kV power supply (common mode)) IEC 61000-4-5 || surge immunity test 1 kV power supply (differential mode)) IEC 61000-4-5 || surge immunity test 1 kV common mode digital I/O) IEC 61000-4-5 || surge immunity test 0.5 kV differential mode digital I/O) IEC 61000-4-5 || conducted RF disturbances 10 V 0.15...80 MHz) IEC 61000-4-6 || conducted emission 150 kHz...30 MHz EN 55011 || radiated emission 30 MHz...1 GHz EN 55011
Touchscreen Technology
Resistive
Output Circuit Current - Minimum
0 mA
Viewing Angle
40 Degrees Top, 60 Degrees Bottom, 60 Degrees Left, 60 Degrees Right
Communication Protocol
CANopen, Modbus, Modbus TCP/IP
Input Type
(2) High Speed Counter (HSC), (6) Digital
Pixel Resolution
320 x 240 Pixels
Number of Outputs
8
Output Circuit Current - Maximum
20 mA
Output Type
(2) Pulse Train Source Transistor, (6) Digital
Output Circuit Voltage - Minimum
0 V
Memory Type
128 KB FRAM, 128 Mb DRAM, 128 Mb Flash
Input Circuit Voltage - Maximum
10 V
Input Circuit Current - Maximum
20 mA
Input Circuit Voltage - Minimum
0 V
Input Circuit Current - Minimum
0 mA
Output Circuit Voltage - Maximum
10 V
Number of Inputs
8
Compatible with Series
Fipway, Magelis GTU, Melsec, Simatic, Sysmac
Compatible with Brand
Allen-Bradley, Mitsubishi, Omron, Rockwell Automation, Siemens, Uni-TE
Compatible Series
Fipway, Magelis GTU, Melsec, Simatic, Sysmac

Dimensions

Height
5.9 in
Width
7.3 in
Depth
9.3 in
Display Size
5.7 inch
Display Screen Size
5.7 in
Overall Depth
3 in
Overall Height
5.09 in
Overall Width
6.42 in

Description

HMI Controller Panel, TFT Color LCD, Voltage 24V DC, Display 320 x 240 Pixels, Viewing Angle (Deg.) 40 Degrees top, 60 Degrees Bottom, 60 Degrees Left, 60 Degrees Right, 128 KB Internal Data Storage, FRAM Memory, Port Type USB 2.0, USB-Mini B, Width 7.3 in, Height 5.9 in, Depth 9.3 in, For Use With Allen-Bradley, FIPWAY, GE, Mitsubishi Melsec, Modbus, Modbus Plus, Modbus TCP, More, Omron Sysmac, Rockwell Automation, Siemens Simatic, Uni-TE
