Shop SCHNEIDER ELECTRIC

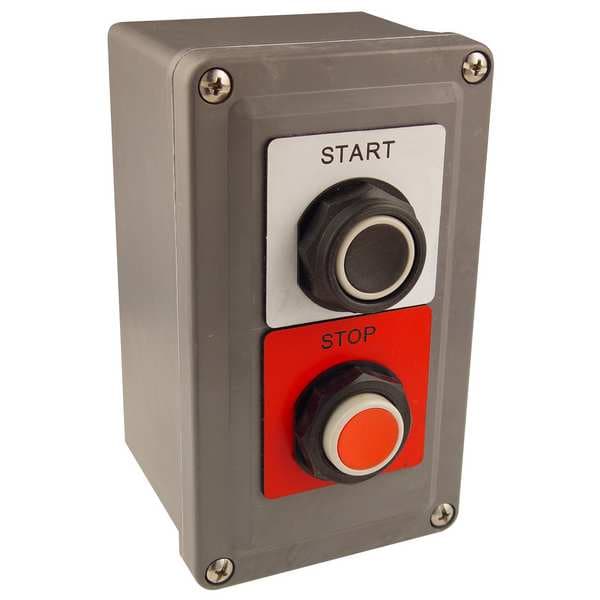

ControlStation, Dead-End, 2Buttons, Blk/Red

  • Mfr # 9001KYSK201

  • Zoro # G3457046

product price:
$
371.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
1NO/2NC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001KYSK201
Zoro #
G3457046
UPC #
785901040088
Country of Origin
Korea, Republic of

Dimensions

Size
30 mm
Overall Depth
3.62 in
Overall Height
7.76 in
Panel Cutout Diameter
30 mm
Overall Width
4.17 in
Manufacturer Warranty Length
18 mo
Hub Size - Maximum
3/4 in

Details

Item
Control Station
Number of Gangs
1
Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
1NO/2NC
Number of Operators
2
NEMA Rating
13, 3, 4, 4X
Hub Style
Dead-End
Series
9001K
Standards
CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, UL 508
For Use With
indoor/outdoor
Action
Momentary/Momentary
Lamp Module Voltage
Module Not Included
Enclosure Color
Silver
Number of Speeds
1
Operator Color
Black, Red
IP Rating
IP66
Mounting
Wall
Enclosure Material
Stainless Steel
Mounting Style
Surface
Terminal Connection
screw-clamp terminals
Product Type
Control Station
NEMA Enclosure Rating
13, 3, 4, 4X
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Hazardous Location Specification
Class II, Div 2, Group G, Class III, Div 1 and 2
Operating Temperature - Maximum
158 Degrees F
Operator Configuration
(2) Push Buttons
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Start/Stop, Type of Operator Push Button, Action Momentary/Momentary, Operator Color Black, Red, Contact Form 1NO/2NC, NEMA Rating 13, 3, 4, 4X, IP Rating IP66, Mounting Wall, Enclosure Material Stainless Steel, Enclosure Color Silver, Standards CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, UL 508, Lamp Module Voltage Module Not Included

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
