Shop SCHNEIDER ELECTRIC

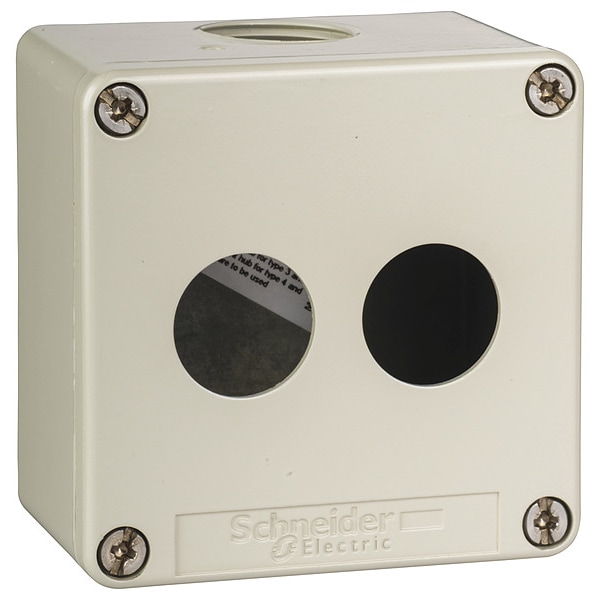

CtrlStationEnclosur, 22mm, 2Hole, DiCstZinc

  • Mfr # XAPG19702
  • Zoro # G3570927
product price:
$
88.25
/ea

Key Features

Number of Columns
2
Hole Size
0.55 in
Material
Die Cast Zinc
Conduit Size
3/4 in
Dimensions
3.15 in H x 3.15 in W x 2.03 in D
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XAPG19702
Zoro #
G3570927
UPC #
785901186670
Country of Origin
Korea, Republic of

Dimensions

Hole Size
0.55 in
Conduit Size
3/4 in
Dimensions
3.15 in H x 3.15 in W x 2.03 in D
Height
3.15 in
Width
3.15 in
Depth
2.03 in
Contact Block Depth
1.93 in
Cad Overall Depth
51.5 mm
Cut-Out Dimensions
Ø 22 mm
Cad Overall Height
80 mm
Cad Overall Width
80 mm
Overall Height
3 1/8 in
Compatible Contact Block Depth
1.93 in
Overall Depth
2 in
Compatible Conduit Size - Maximum
3/4 in
Panel Cutout Diameter
22 mm
Overall Width
3 1/8 in

Details

Item
Control Station Enclosure
Number of Columns
2
Material
Die Cast Zinc
NEMA Rating
13, 4
Cable Entry
cable gland || 1 x cable gland
Color
Gray
Mounting Style
Surface
For Use With
22 mm dia control and signaling units
Standards
RoHS
Type
Product or component type : Die-cast empty control station
Number Of Horizontal Rows
1
Colour Of Base Of Enclosure
grey RAL 7032)
Colour Of Cover
grey RAL 7032)
Electrical Shock Protection Class
class I IEC 60536 || class I NF C 20-030
Control Station Type
metal
Ip Degree Of Protection
IP65 IEC 60529 || IP657 NF C 20-010
Number Of Vertical Rows
2
Thread Type
3/4 NPT
Ik Degree Of Protection
IK07 EN/IEC 62262
Ambient Air Temperature For Storage
-40-70°C
Product Destination
for Ø 22 mm control and signalling units
Resistance To Chemical Agents
special treatment can be obtained on request
Ambient Air Temperature For Operation
-25-70°C
Compatibility Code
XAPG
Device Short Name
XAPG
Product Or Component Type
die-cast empty control station
Protective Treatment
TH
Number Of Cut-Out
2 cut-outs
NEMA Enclosure Rating
13, 4
Compatible with Series
XB4, XB5
Shell Material
Die Cast Zinc
Compatible Series
XB4, XB5
Wire Color
Gray

Description

Control Station Enclosure, Number of Columns 2, Number of Holes 2, NEMA Rating 13, 4, Conduit Size 3/4 in, Dimensions 3.15 in H x 3.15 in W x 2.03 in D, Hole Size 0.55 in, Material Die Cast Zinc, Height 3.15 in, Width 3.15 in, Depth 2.03 in, Color Gray, Type Product or component type : Die-cast empty control station, For Use With 22 mm dia control and signaling units, Mounting Style Surface, Contact Block Depth 1.93 in, Standards RoHS
