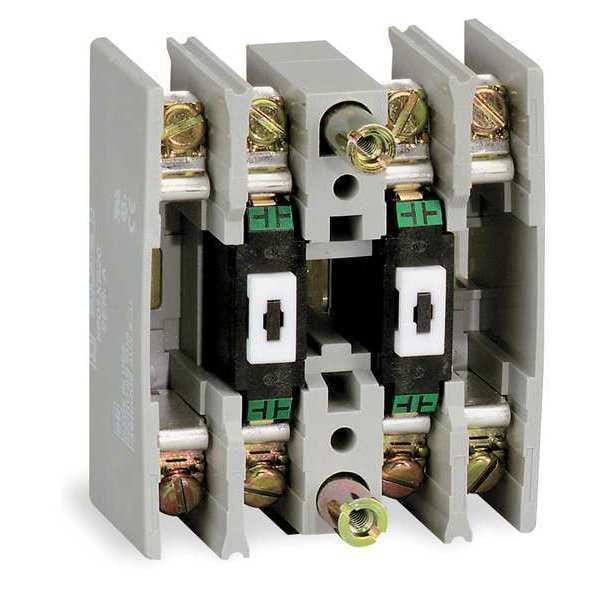

Schneider Electric Deck, Adder 8501XB20 - main

Deck, Adder

  • Mfr # 8501XB20

  • Zoro # G2265462

product price: $61.45
/ea

Key Features

For Use With
2 Convertible Contact Cartridges
Accessory Group
A, F
Standards
CE Certified, CSA Certified, UL Listed
Module Function
Expansion
Awg Gauge
AWG 18 to AWG 12 copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501XB20
Zoro #
G2265462
UPC #
785901537335
Country of Origin
United States

Details

Item
Adder Deck
For Use With
2 Convertible Contact Cartridges
Accessory Group
A, F
Standards
CE Certified, CSA Certified, UL Listed
Module Function
Expansion
Awg Gauge
AWG 18 to AWG 12 copper
Tightening Torque
control circuit 1.02-1.36 N.m screw terminals
Rated Breaking Capacity
6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508
Electrical Connection
screw clamp terminals
Relay Type
control relay
Product Or Component Type
adder deck
Contacts Type And Composition
2 NO 2 standard contact cartridges
Product Certifications
CE || UL recognized E78403 CCN NKCR2 || CSA LR60905 class 3211 02
[Icm] Rated Short-Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508
Rated Short Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508; 30 A 240 V AC inductive control circuit UL 508; 15 A 480 V AC inductive control circuit UL 508; 12 A 600 V AC inductive control circuit UL 508; 10 A Less than or Equal to 600 V AC resistive control circuit UL 508; 1.1 A 125 V DC inductive control circuit UL 508; 0.55 A 250 V DC inductive control circuit UL 508; 0.2 A 301 to 600 V DC inductive control circuit UL 508; 4 A 125 V DC inductive control circuit UL 508; 0.8 A 250 V DC resistive control circuit UL 508
Terminal Tightening Torque
Control circuit 9.03 to 12.04 lbf.in (1.02 to 1.36 N.m) screw terminals

Description

Adder Deck, For Use With 2 Convertible Contact Cartridges, Includes Not Applicable, Module Function Expansion, Standards CE Certified, CSA Certified, UL Listed
