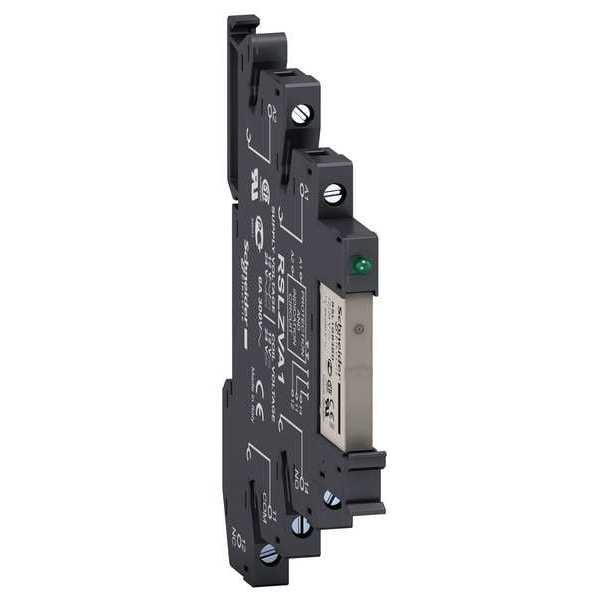

DIN Rail, Slim Plug-In Relay, Square, 6 A, 5 Pins, Screw

  • Mfr # RSL1PVJU

  • Zoro # G3647917

CAD Available
product price:  $16.29
/ea

Key Features

CAD Drawing
Mounting Style
DIN Rail
Electrical Connection
Screw
Base Shape
Square
Number of Pins
5
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
RSL1PVJU
Zoro #
G3647917
UPC #
785901614692
Country of Origin
China

Dimensions

Overall Height - Relay
3.1 in
Overall Depth
3.78 in
Body Depth
3.74 in
Body Width
0.24 in
Body Height
3.09 in

Details

Item
Slim Interface Relay
Mounting Style
DIN Rail
Electrical Connection
Screw
Base Shape
Square
Number of Pins
5
Coil Voltage
12V DC
Current Rating
6 A
Contact Form
SPDT
Contact Rating (AC)
6 A @ 250V
Contact Rating (DC)
6 A @ 28V
Contact Material
Silver Alloy
Standards
CE Certified, CSA C22.2 No 14, EN/IEC 61810-1, GOST, UL 508
Status Indicator
LED Indicator
Features
12VAC/DC Socket Supply Voltage
Power Consumption - Relay
0.2 W
Socket
Mfr. No. RSLZVA1
Socket Supply Voltage
12V AC/DC
Socket Included
Screw Connector Socket
Contact Amp Rating (Resistive)
6
Mechanical Operating Durability
10,000,000
Weight
0.96 oz
Minimum Switching Voltage
12V
Sealing
Enclosed
Push-To-Test Method
No Button
Minimum Switching Current
100 mA
Minimum Operating Temperature
-40 Degrees F
Response Time
12 msec
Input Voltage
12V DC
Dielectric Strength
1,000V AC Between Contacts, 4,000V AC Between Coil and Contact
Power Consumption
0.17 W
Pin Shape
Flat
Maximum Operating Temperature
131 Degrees F
For Use With
Hard-Wired Logic Automated Systems
IP Rating
IP40
Electrical Operating Durability
60,000
Maximum Switching Voltage
277V
Dielectric Voltage
1000 V AC between contacts || 4000 V AC between coil and contact
Switching Current
100 mA
Coil Resistance
848 Ohm DC 23°C +/- 10 %
Protection Category
RT III
Switching Voltage
12 to 277 V
CAD Available
Yes
Base Type
Square

Description

Slim Interface Relay, Base Type Square, Coil Voltage 12V DC, Contact Form SPDT, Current Rating 6 A, Electrical Connection Screw Connector, Flat Pin Width Not Applicable, Number of Pins 5, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 6 A @ 250V, Contact Rating (DC) 6 A @ 28V, Mounting Style DIN Rail, Push-To-Test Method No Button, Body Depth 3.74 in, Body Height 3.09 in, Body Width 0.24 in, Contact Material Silver Alloy
