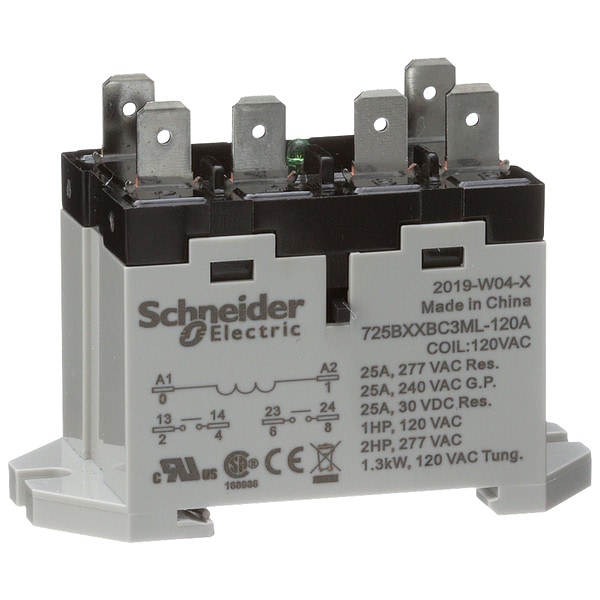

DIN Rail & Top Flange, Enclosed Power Relay, Square, 25 A, 6 Pins, Quick Connect

  • Mfr # 725BXXBC3ML-120A

  • Zoro # G1043506

CAD Available
product price:  $20.75
/ea

Key Features

CAD Drawing
Mounting Style
DIN Rail & Top Flange
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
6
Coil Voltage
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
725BXXBC3ML-120A
Zoro #
G1043506
UPC #
-
Country of Origin
China

Dimensions

Dimensions
1.94"H, 2.67"W, 1.30"D
Overall Height - Relay
1.94 in
Body Height
1.3 in
Body Depth
1.3 in
Overall Depth
1.94 in
Flat Pin Width
0.25 in
Body Width
2.67 in
Width
1.37 in (34.9 mm)
Depth
1.94 in (49.4 mm)

Details

Item
Enclosed Power Relay
Mounting Style
DIN Rail & Top Flange
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
6
Coil Voltage
120V AC
Current Rating
25 A
Contact Form
DPST-NO
Contact Rating (AC)
25 A @ 240/277V
Contact Rating (DC)
25 A @ 28/30V
Features
2hp @ 277V AC, LED & Button
Standards
CE Certified, CSA Certified, IEC 60947-1, UL60947-4-1A
Hz
50/60
Coil Rating
2.5VA, 1.9W
Power Consumption - Relay
2.5 VA
Contact Amp Rating (Resistive)
25A @ 277VAC/30VDC
Contact Material
Silver Alloy
Number of Poles
2
IP Rating
IP40
Minimum Operating Temperature
-4 Degrees F
Maximum Switching Voltage
240V, 277V
Push-To-Test Method
Test Button
Mechanical Operating Durability
5,000,000
Series
Harmony(TM) 725 Power Series
Horsepower @ 240V AC
2 hp
Input Voltage
102 to 132V AC
Maximum Operating Temperature
131 Degrees F
Power Consumption
2.5 VA
Electrical Operating Durability
100,000
Status Indicator
LED Indicator
Weight
4.23 oz
Horsepower @ 120V AC
1 hp
Operating Current
25 A at 240V AC (General Purpose), 25 A at 240V AC (Resistive Load), 25 A at 277V AC (Resistive Load), 25 A at 28V DC (Resistive Load), 25 A at 30V DC (Resistive Load)
Motor Rated
Yes
Response Time
30 msec
Minimum Switching Current
100 mA
Coil Resistance
5,200 ohm
Dielectric Strength
2,000V AC Between Poles, 4,000V AC Between Coil and Contact
Frequency
50/60 Hz
CAD Available
Yes
Nominal input voltage
102...132 V AC 50/60 Hz
Product Certifications
UL; CSA; CE
Connections - terminals
Quick-connect terminal strips 6.35 x 0.8 mm
Rated power in W
1.3 kW 120 V tungsten
Average Coil Consumption
2.50 VA
Contact Composition
2 NO
Rated Power in HP
1 hp 120 V AC; 2 hp 277 V AC
ambient temperature range - operational
-4 to 131°F (-20 to 55°C)
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Series name
Power
Product Range
Harmony Electromechanical Relays
Type
Power

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPST-NO, Current Rating 25 A, Electrical Connection Quick-Connect, Flat Pin Width 0.25 in, Number of Pins 6, Status Indicator LED Indicator, Contact Rating (AC) 25 A @ 240/277V, Contact Rating (DC) 25 A @ 28/30V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method Test Button, Body Depth 1.3 in, Body Height 1.3 in, Body Width 2.67 in, Coil Resistance 5,200 ohm
