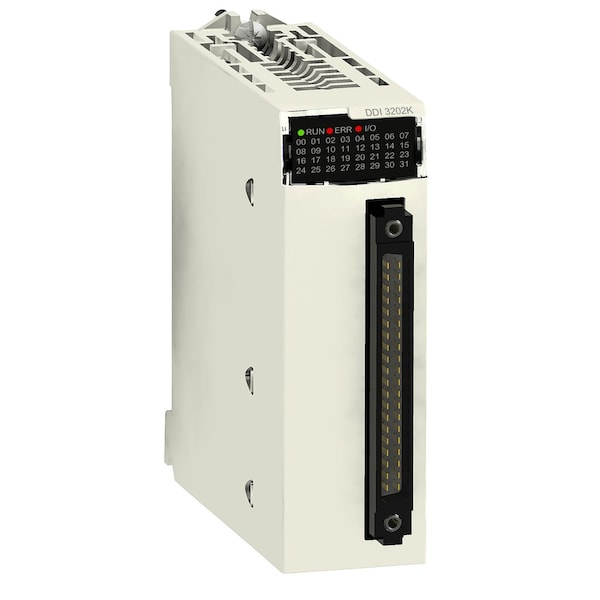

Discrete input module, Modicon X80, 32 inputs, 24V DC positive

Discrete input module X80 - 32 inputs -

< 14 V DC sensor fault || > 18 V DC sensor OK

<= 0.5 mA

3 gn

7 ms

discrete input module

121 mA 3.3 V DC

1 external fuse per group of channel 0.5 A fast blow || reverse polarity protection

with 2-wire/3-wire proximity sensors IEC 60947-5-2 || with 2-wire/3-wire proximity sensors IEC 61131-2 Type 1

9600 Ohm

1500 V AC 50/60 Hz 1 minute, primary/secondary || 500 V DC 1 minute, between group of channels

19 to 30 V

-40-85 °C

3.9 W

> 10 MOhm 500 V DC

0 to 6561.68 ft (0 to 2000 m) || 2000 to 5000 m with derating factor

32

24 V DC positive

no

>= 2 mA

isolated

1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O

2.5 mA

4 ms

30 gn

0-60 °C

905000 H

5-95 % 55-55 °C without condensation

current sink (logic positive)

Modicon X80
