- MFR #
- 9001KR11UH1H1
- Zoro #
- G3308362
- UPC #
- -
- Country of Origin
- Mexico
- Item

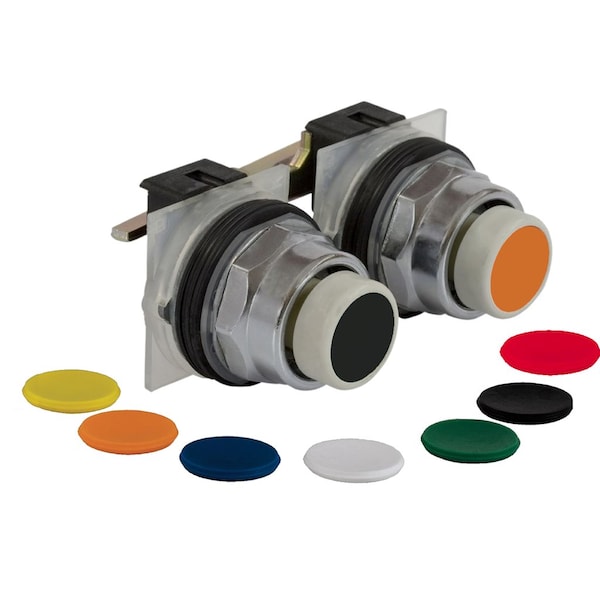

- Push Button Operator
- Push Button Style
- Flush
- Operator Illumination
- Illuminated
- Head Color
- Multi
- Terminal Connection
- Screw Clamp
- Standards
- JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C 852, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, JIS C8201-1
- Bezel Material
- metal
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Product Certifications
- NEMA || UL 508
- Positive Opening
- without
- Ambient Air Temperature For Storage
- -40-70°C
- Mechanical Durability
- 5000000 cycles
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Product Or Component Type
- double-headed push-button
- Shape Of Signaling Unit Head
- octagonal
- Shape Of Screw Head
- cross slotted
- Protective Treatment
- TC
- Connections - Terminals
- screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
- Ambient Air Temperature For Operation
- -25-70°C
- Ip Degree Of Protection
- IP66 IEC 60529
- Operating Position
- any position
- Type Of Operator
- 2 stay put
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Device Presentation
- complete product
- Contacts Type And Composition
- 2 C/O
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Device Short Name
- 9001K
- Operator Profile
- flush 7 colours choice unmarked
- Shock Resistance
- 50 gn IEC 60068-2-27
- Contacts Material
- silver alloy contacts
- Electrical Shock Protection Class
- class II IEC 61140
- Range of Product
- Harmony 9001K
- Cap/Operator or Lens Colour
- 7 colours choice
